- Moc [W]
- 90.0
- Informacje dodatkowe
- No. of channels: 1
- Pass Through Data Ratesi: 10/100/1000Mbps
- Power over Ethernet Output:
- - Pin Assignment and Polarity: 1/2 (-), 3/6 (+),4/5 (+), 7/8 (-)
- - Output Power Voltage: 56VDC
- - User Port Power: 90W
- Input Power Requirements:
- - AC Input Voltage: 100 to 240 VAC
- - AC Input Current: 1A 100-240 VAC
- - AC Frequency: 50 to 60 Hz
- Dimensions: 178,5 x 80 x 46 mm

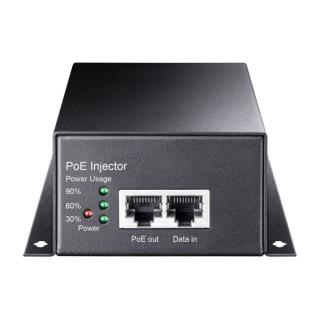

- Indicators:
- - System Indicator: AC Power
- - User Indicator: Channel Power
- Connectors: Shielded RJ-45, EIA 568A and 568B
- Protection:
- - Over current protection
- - Over load protection
- - Over voltage protection
- - Anti-interference protection
- Regulatory Compliance:
- - IEEE 802.3af (15.4W)
- - IEEE 802.3at (30W)
- - IEEE802.3bt (90W)
- Environmental Conditions:
- - Operating Ambient Temperature: 0 to 45 °C
- - Operating Humidity: Maximum 80%, Non-condensing
- - Storage Temperature: -20 to 70 °C
- - Storage Humidity: Maximum 80%, Non-condensing
