- Waga
- 1.88 kg
- Gniazdo procesora
- Socket 1851
- Obsługiwane typy procesorów
- Intel Core Ultra Processors (series 2)
- Format płyty
- ATX
- Chipset płyty głównej
- Intel® Z890
- Ilość złącz pamięci DDR5
- 4
- Maksymalna wielkość pamięci
- 256 GB
- Tryb pracy pamięci RAM
- Dual Channel
- Uwagi do pamięci RAM
- Max. overclocking frequency:
- - 1DPC 1R Max speed up to 9200+ MT/s
- - 1DPC 2R Max speed up to 7200+ MT/s
- - 2DPC 1R Max speed up to 4800+ MT/s
- - 2DPC 2R Max speed up to 4800+ MT/s
- Supports Intel® POR Speed and JEDEC Speed
- Supports Memory Overclocking and Intel® XMP 3.0
- Supports Non-ECC, Un-buffered memory
- Supports CUDIMM
- Zintegrowany kontroler SATA
- Chipset+CPU: 4x SATA III 6Gb/s - RAID 0,1,10,5 + 4x M.2 - RAID 0,1,10,5
- Uwagi do kontrolera SATA
- - M.2_1 Source (From CPU) supports up to PCIe 5.0 x4 ,
- supports 2280/2260 devices
- - M.2_2 Source (From CPU) supports up to PCIe 4.0 x4 ,
- supports 22110/2280/2260 devices
- - M.2_3 Source (From Chipset) supports up to PCIe 4.0 x4 ,
- supports 2280/2260/2242 devices
- - M.2_4 Source (From Chipset) supports up to PCIe 4.0 x4 / SATA mode,
- supports 2280/2260/2242 devices
- Gniazda karty graficznej
- HDMI
- DisplayPort
- USB Type-C/DisplayPort
- Uwagi do karty graficznej
- Support HDMI™ 2.1, maximum resolution of 4K 60Hz
- Support DisplayPort 1.4, maximum resolution of 4K 60Hz
- Thunderbolt™ 4 port, supporting DisplayPort 1.4 over USB Type-C®,
- with a maximum resolution of 4K 120Hz / 8K 60Hz
- Graphics specifications may vary depending on the CPU installed
- Zintegrowana karta dźwiękowa
- Realtek ALC897
- Gniazda karty dźwiękowej
- Wewnętrzne gniazdo audio przedniego panelu
- 3x Audio Jack
- Złącza PCI Express x16
- 3
- Złącza PCI Express x1
- 1
- Uwagi do złącz PCI
- - PCI_E1 Gen PCIe 5.0 supports up to x16 (From CPU)
- - PCI_E2 Gen PCIe 4.0 supports up to x1 (From Chipset)
- - PCI_E3 Gen PCIe 4.0 supports up to x4 (From Chipset)
- - PCI_E4 Gen PCIe 4.0 supports up to x4 (From Chipset)
- Port LAN
- 1x 5 Gigabit LAN Realtek®
- Maksymalna ilość portów USB 2.0
- 8
- Maksymalna ilość portów USB 3.x
- 9

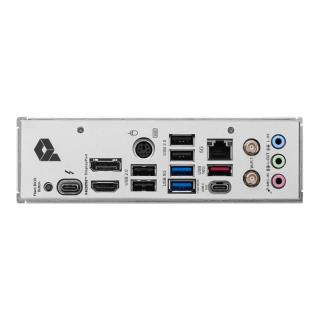

- Porty USB na panelu tylnym
- 4x USB 2.0 + 2x USB 3.0 + 1x USB 3.1 + 1x USB 3.1 Type-C
- Gniazda USB na płycie głównej
- 2x USB 2.0 (4 porty) + 2x USB 3.0 (4 porty) + 1x USB 3.2 Type-C (1 port)
- Port Wi-Fi
- IEEE 802.11a/b/g/n/ac/ax/be
- Port Bluetooth
- Bluetooth V5.4
- Uwagi do WiFi / BT
- Intel® Wi-Fi 7
- The Wireless module is pre-installed in the M.2 (Key-E) slot
- Supports MU-MIMO TX/RX, 2.4GHz / 5GHz / 6GHz* (320MHz) up to 5.8Gbps
- Supports 802.11 a/ b/ g/ n/ ac/ ax/ be
- Supports Bluetooth® 5.4**, MLO, 4KQAM
- 6GHz band support may depend on every country’s regulations and Wi-Fi 7
- will be ready in Windows 11 version 24H2.
- The Bluetooth version may be updated, please refer to the Wi-Fi chipset
- vendor’s website for details. Bluetooth 5.4 will be ready in
- Windows 11 version 24H2.
- Port PS/2
- Port combo klawiatury/myszy PS/2
- Port szeregowy (COM)
- Brak
- Port równoległy (LPT)
- Brak
- Inne porty i gniazda
- Thunderbolt 5 card connector(JTBT5, support RTD3)
- CPU Fan
- 5x System Fan
- 2x Front Panel
- Złącze czujnika otwarcia obudowy
- Tuning Controller Connector
- 3x Addressable V2 RGB LED connector
- RGB LED connector
- Gniazdo modułu TPM
- Gniazdo zasilania
- ATX (24-pin) + 2x ATX12V (8-pin) + PCIe (8-pin)
- Wymiary [S x W] (mm)
- 243,84 x 304,8
- Opakowanie
- BOX
- Zawiera baterię / akumulator
- Tak
- Informacje dodatkowe
- Support for Windows® 11 64-bit
