- Gniazdo procesora
- Socket 1851
- Obsługiwane typy procesorów
- Intel Core Ultra Processors (series 2)
- Uwagi do procesora
- - Supports Intel® Hybrid Technology
- - Supports Intel® Turbo Boost Max 3.0 Technology
- - Supports Intel® Thermal Velocity Boost (TVB)
- - Supports Intel® Adaptive Boost Technology (ABT)
- - Integrated NPU for dedicated AI acceleration
- Format płyty
- ATX
- BIOS
- 256Mb AMI UEFI Legal BIOS with GUI support
- Chipset płyty głównej
- Intel® B860
- Ilość złącz pamięci DDR5
- 4
- Maksymalna wielkość pamięci
- 256 GB
- Tryb pracy pamięci RAM
- Dual Channel
- Standard pamięci
- DDR5-8933+ (OC)
- Uwagi do pamięci RAM
- - Supports DDR5 non-ECC, un-buffered memory up to 8933+(OC)
- - 1DPC 1R Up to 8933+ MHz (OC), 5600 MHz Natively
- - 1DPC 2R Up to 6800+ MHz (OC), 5600 MHz Natively
- - 2DPC 1R Up to 6533+ MHz (OC), 4800 MHz Natively
- - 2DPC 2R Up to 5600+ MHz (OC), 4400 MHz Natively
- - Supports Clocked Unbuffered DIMM (CUDIMM)
- - Supports Intel® Extreme Memory Profile (XMP) 3.0x
- Zintegrowany kontroler SATA
- Chipset+CPU: 4x SATA III 6Gb/s - RAID 0,1,10,5 + 4x M.2
- Uwagi do kontrolera SATA
- CPU:
- - 1 x Blazing M.2 Socket (M2_1, Key M), supports type 2280 PCIe Gen5x4
- (128 Gb/s) mode
- Chipset:
- - 1 x Hyper M.2 Socket (M2_2, Key M), supports type 2230/2242/2260/2280
- PCIe Gen4x4 (64 Gb/s)
- - 1 x Hyper M.2 Socket (M2_3, Key M), supports type 2280 PCIe Gen4x4
- (64 Gb/s) mode
- - 1 x M.2 Socket (M2_4, Key M), supports type 2280 PCIe Gen4x2 (32 Gb/s)
- - 4 x SATA3 6.0 Gb/s Connectors
- Supports Intel® Volume Management Device (VMD)
- Supports NVMe SSD as boot disks
- Wbudowana karta graficzna
- Intel® Xe LPG Graphics Architecture
- Gniazda karty graficznej
- HDMI
- DisplayPort
- Thunderbolt™ 4
- Uwagi do karty graficznej
- - 1 x HDMI 2.1 TMDS/FRL 8G Compatible, supports HDR, HDCP 2.3 and max.
- resolution up to 4K 120Hz
- - 1 x DisplayPort 1.4 with DSC (compressed), supports HDCP 2.3 and max.
- resolution up to 8K 60Hz / 5K 120Hz
- Intel® UHD Graphics Built-in Visuals and the VGA outputs can be supported
- only with processors which are GPU integrated
- Supports two 4K displays or one 8K display
- Only the CPU's embedded graphics can be displayed through Thunderbolt™ port
- Zintegrowana karta dźwiękowa
- Realtek ALC1220 7.1 Surround Sound High Definition Audio CODEC
- Gniazda karty dźwiękowej
- 2x Audio Jack
- Wewnętrzne gniazdo audio przedniego panelu
- Wyjście optyczne S/PDIF
- Uwagi do karty dźwiękowej
- - Impedance Sensing on Rear Out port
- - Individual PCB Layers for R/L Audio Channel
- - Nahimic Audio
- Złącza PCI Express x16
- 2
- Uwagi do złącz PCI
- CPU:
- - 1 x PCIe 5.0 x16 Slot (PCIE1), supports x16 mode
- Chipset:
- - 1 x PCIe 4.0 x16 Slot (PCIE2), supports x2 mode*
- - 1 x M.2 Socket (Key E), supports type 2230 WiFi/BT PCIe WiFi module and
- Intel® CNVio/CNVio2 (Integrated WiFi/BT)
- - Supports NVMe SSD as boot disks
- Port LAN
- 1x 2,5 Gigabit LAN 100/1000/2500 Mb/s
- Uwagi do karty sieciowej
- - Killer E3100G
- - Supports Killer LAN Software
- - Supports Killer DoubleShot™ Pro
- Maksymalna ilość portów USB 2.0
- 7
- Maksymalna ilość portów USB 3.x
- 11
- Maksymalna ilość portów USB 4.0
- 1

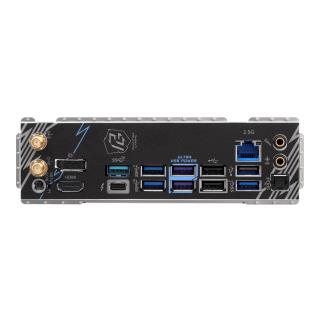

- Porty USB na panelu tylnym
- 3x USB 2.0 + 4x USB 3.0 + 2x USB 3.1 + 1x Thunderbolt 4
- Gniazda USB na płycie głównej
- 2x USB 2.0 (4 porty) + 2x USB 3.0 (4 porty) + 1x USB 3.2 Type-C (1 port)
- Port Wi-Fi
- IEEE 802.11a/b/g/n/ac/ax/axe
- Port Bluetooth
- Bluetooth V5.3
- Uwagi do WiFi / BT
- - 802.11axe Wi-Fi 6E Module
- - Supports Dual-Band 2x2 160MHz with extended 6GHz band* support
- - 2 antennas to support 2 (Transmit) x 2 (Receive) diversity technology
- - Supports MU-MIMO
- - Supports Killer LAN Software
- - Supports Killer DoubleShot™ Pro
- Port PS/2
- Brak
- Port szeregowy (COM)
- Brak
- Port równoległy (LPT)
- Brak
- Inne porty i gniazda
- Thermistor Cable Header
- SPI TPM header (14-1pin)
- Power LED and Speaker Header
- RGB LED Header
- 3x 4-pin Chassis Fan headers
- 2x CPU Fan connector(s)
- 5x 4-pin Chassis Fan header(s)
- AIO Pump Fan Connector
- 2x Antenna Ports
- BIOS FlashBack button
- Gniazdo zasilania
- ATX (24-pin) + 2x ATX12V (8-pin)
- Wymiary [S x W] (mm)
- 305 x 244
- Opakowanie
- BOX
- Wyposażenie dodatkowe
- - 2 x SATA Data Cables
- - 2 x ASRock WiFi 2.4/5/6 GHz Antennas
- - 1 x ARGB Splitter Cable
- - 1 x Thermistor Cable
- Zawiera baterię / akumulator
- Tak
- Informacje dodatkowe
- Operating Systems: Microsoft Windows® 11 64-bit
