- Waga
- 2.54 kg
- Gniazdo procesora
- Socket 1851
- Obsługiwane typy procesorów
- Intel Core Ultra Processors (series 2)
- Uwagi do procesora
- L3 cache varies with CPU
- Format płyty
- ATX
- BIOS
- 256 Mbit flash
- Chipset płyty głównej
- Intel® Z890
- Ilość złącz pamięci DDR5
- 4
- Maksymalna wielkość pamięci
- 256 GB
- Tryb pracy pamięci RAM
- Dual Channel
- Standard pamięci
- DDR5-9500 (OC)
- DDR5-9466 (OC)
- DDR5-9333 (OC)
- DDR5-9200 (OC)
- DDR5-9066 (OC)
- DDR5-8933 (OC)
- DDR5-8800 (OC)
- DDR5-8600 (OC)
- DDR5-8400 (OC)
- DDR5-8266 (OC)
- DDR5-8200 (OC)
- DDR5-8000 (OC)
- DDR5-7950 (OC)
- DDR5-7900 (OC)
- DDR5-7800 (OC)
- DDR5-7600 (OC)
- DDR5-7400 (OC)
- DDR5-7200 (OC)
- DDR5-7000 (OC)
- DDR5-6800 (OC)
- DDR5-6600 (OC)
- DDR5-5800
- DDR5-5600
- Uwagi do pamięci RAM
- Support for ECC Un-buffered DIMM 1Rx8/2Rx8 memory modules
- (operate in non-ECC mode)
- Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules
- Support for Extreme Memory Profile (XMP) memory modules
- Support CUDIMM memory module
- Zintegrowany kontroler SATA
- Chipset+CPU: 6x SATA III 6Gb/s - RAID 0,1,10,5 + 5x M.2 - RAID 0,1,10,5
- Uwagi do kontrolera SATA
- CPU:
- - 1x M.2 connector (Socket 3, M key, type 25110/22110/2580/2280
- PCIe 5.0 x4/x2 SSD support) (M2A_CPU)
- - 1x M.2 connector (Socket 3, M key, type 22110/2280
- PCIe 4.0 x4/x2 SSD support) (M2B_CPU)
- - 1x M.2 connector (Socket 3, M key, type 22110/2280
- PCIe 5.0 x4/x2 SSD support) (M2D_CPU)
- Chipset:
- - 1x M.2 connector (Socket 3, M key, type 2280 PCIe 4.0 x4/x2 SSD support
- PCIe 4.0 x4/x2 SSD support) (M2P_SB)
- - 1x M.2 connector (Socket 3, M key, type 2280 SATA and
- PCIe 4.0 x4/x2 SSD support) (M2M_SB)
- - 4x SATA 6Gb/s connectors
- Gniazda karty graficznej
- HDMI
- 2x Thunderbolt™ 4 (USB Type-C®)
- Uwagi do karty graficznej
- - HDMI 1.4 supporting a maximum resolution of 1920x1080@30 Hz
- - Support for HDMI 1.4 version
- - When a Thunderbolt monitor is installed, the maximum resolution
- supported is 5120x2880@60 Hz with 24 bpp (single display output)
- - When a USB4 USB Type-C monitor is installed, the maximum resolution
- supported is 3840x2160@240 Hz (single display output)
- Zintegrowana karta dźwiękowa
- Realtek® ALC1220 CODEC
- Gniazda karty dźwiękowej
- Wyjście optyczne S/PDIF
- 2x Audio Jack
- Wewnętrzne gniazdo audio przedniego panelu
- Uwagi do karty dźwiękowej
- ESS ES9118 DAC chip
- Support for DTS:X® Ultra
- High Definition Audio
- 2/4/5.1-channel
- Złącza PCI Express x16
- 3
- Uwagi do złącz PCI
- CPU:
- - 1 x PCI Express x16 slot, supporting PCIe 5.0 and running at x16 PCIEX1
- - The PCIEX16 slot can only support a graphics card or an NVMe SSD
- - If only one graphics card is to be installed, be sure to install it in
- the PCIEX16 slot
- - The PCIEX16 slot shares bandwidth with the M2D_CPU connector
- - The PCIEX16 slot operates at up to x8 mode when a device is installed in
- the M2D_CPU connector
- Chipset:
- - 1 x PCI Express x16 slot, supporting PCIe 4.0 and running at x4 (PCIEX4)
- - 1 x PCI Express x16 slot, supporting PCIe 3.0 and running at x1 (PCIEX1)
- Port LAN
- 1x 10 Gigabit LAN Marvell® AQtion AQC113C
- Maksymalna ilość portów USB 2.0
- 6
- Maksymalna ilość portów USB 3.x
- 15
- Maksymalna ilość portów USB 4.0
- 2

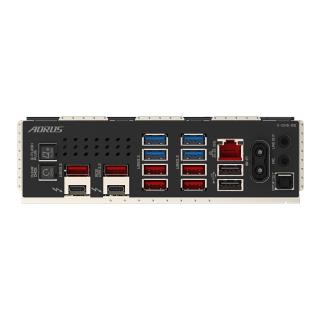

- Porty USB na panelu tylnym
- 2x USB 2.0 + 4x USB 3.0 + 6x USB 3.1 + 2x Thunderbolt 4 (USB4 Type-C)
- Gniazda USB na płycie głównej
- 2x USB 2.0 (4 porty) + 2x USB 3.0 (4 porty) + 1x USB 3.2 Type-C (1 port)
- Port Wi-Fi
- IEEE 802.11a/b/g/n/ac/ax/be
- Port Bluetooth
- Bluetooth V5.4
- Uwagi do WiFi / BT
- Intel Wi-Fi 7 BE200NGW
- - 802.11a, b, g, n, ac, ax, be, supporting 2.4/5/6 GHz carrier frequency b
- - BLUETOOTH 5.4
- - Support for 11be 320MHz wireless standard
- - Actual data rate may vary depending on environment and equipment
- - Wi-Fi 7 features require Windows 11 SV3 to function properly
- - Wi-Fi 7 channels on 6 GHz band availability depends on country's regulati
- Port PS/2
- Brak
- Port szeregowy (COM)
- Brak
- Port równoległy (LPT)
- Brak
- Inne porty i gniazda
- 2x SMA antenna connectors (2T2R)
- Q-Flash Plus button
- Clear CMOS button(s)
- CPU fan/water cooling pump header
- 4x system fan headers
- 4x system fan/water cooling pump headers
- 4x addressable RGB Gen2 LED strip headers
- RGB LED strip header
- Gniazdo modułu TPM
- Noise detection header
- Reset jumper
- Clear CMOS jumper
- 2x temperature sensor headers
- Gniazdo zasilania
- ATX (24-pin) + 2x ATX12V (8-pin)
- Wymiary [S x W] (mm)
- 305 x 244
- Opakowanie
- BOX
- Zawiera baterię / akumulator
- Tak
- Informacje dodatkowe
- Support for Windows 11 64-bit
- BIOS: PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0
