- Waga
- 2.2 kg
- Gniazdo procesora
- Socket 1851
- Obsługiwane typy procesorów
- Intel Core Ultra Processors (series 2)
- Uwagi do procesora
- L3 cache varies with CPU
- Format płyty
- ATX
- BIOS
- 256 Mbit flash
- Chipset płyty głównej
- Intel® B860
- Ilość złącz pamięci DDR5
- 4
- Maksymalna wielkość pamięci
- 256 GB
- Tryb pracy pamięci RAM
- Dual Channel
- Standard pamięci
- DDR5-9200 (OC)
- DDR5-8800 (OC)
- DDR5-8600 (OC)
- DDR5-8400 (OC)
- DDR5-8266 (OC)
- DDR5-8200 (OC)
- DDR5-8000 (OC)
- DDR5-7950 (OC)
- DDR5-7900 (OC)
- DDR5-7800 (OC)
- DDR5-7600 (OC)
- DDR5-7400 (OC)
- DDR5-7200 (OC)
- DDR5-7000 (OC)
- DDR5-6800 (OC)
- DDR5-6600 (OC)
- DDR5-6400
- DDR5-5600
- Uwagi do pamięci RAM
- Support for ECC Un-buffered DIMM 1Rx8/2Rx8 memory modules
- (operate in non-ECC mode)
- Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules
- Support for Extreme Memory Profile (XMP) memory modules
- Zintegrowany kontroler SATA
- Chipset+CPU: 4x SATA III 6Gb/s - RAID 0,1,5,10 + 3x M.2
- Uwagi do kontrolera SATA
- CPU:
- - 1 x M.2 connector (Socket 3, M key, type 25110/22110/2580/2280
- PCIe 5.0x4/x2 SSD support) (M2A_CPU)
- Chipset:
- - 2 x M.2 connectors (Socket 3, M key, type 22110/2280
- PCIe 4.0 x4/x2 SSD support) (M2Q_SB, M2N_SB)
- - 4x SATA 6Gb/s connectors
- Gniazda karty graficznej
- 2x HDMI
- USB4 Type-C
- DisplayPort
- Uwagi do karty graficznej
- - 1 x USB4® USB Type-C® port, supporting USB4 and DisplayPort video outputs
- and a maximum resolution of 3840x2160@144 Hz
- - Support for DisplayPort 2.1 version
- - 1 x DisplayPort, supporting a maximum resolution of 3840x2160@144 Hz
- - Support for DisplayPort 2.1 version
- - 1 x HDMI port, supporting a maximum resolution of 4096x2160@60 Hz
- - Support for HDMI 2.1 version and HDCP 2.3
- - 1 x front HDMI port, supporting a maximum resolution of 1920x1080@30 Hz
- - Support for HDMI 1.4 version(Graphics specifications may vary depending o
- - Support for up to quad-display at the same time
- Zintegrowana karta dźwiękowa
- Realtek® HD Audio CODEC
- Gniazda karty dźwiękowej
- Wyjście optyczne S/PDIF
- 2x Audio Jack
- Wewnętrzne gniazdo audio przedniego panelu
- Uwagi do karty dźwiękowej
- High Definition Audio
- 2/4/5.1/7.1-channel
- Złącza PCI Express x16
- 3
- Uwagi do złącz PCI
- CPU:
- - 1 x PCI Express x16 slot, supporting PCIe 5.0 and running at x16 PCIEX16
- - The PCIEX16 slot can only support a graphics card or an NVMe SSD
- - If only one graphics card is to be installed, be sure to install it in
- the PCIEX16 slot
- Chipset:
- - 2 x PCI Express x16 slots, supporting PCIe 4.0 and running at x1
- (PCIEX1_1, PCIEX1_2)
- Port LAN
- 1x 2,5 Gigabit LAN 100/1000/2500 Mb/s (Realtek®)
- Maksymalna ilość portów USB 2.0
- 8
- Maksymalna ilość portów USB 3.x
- 9
- Maksymalna ilość portów USB 4.0
- 1

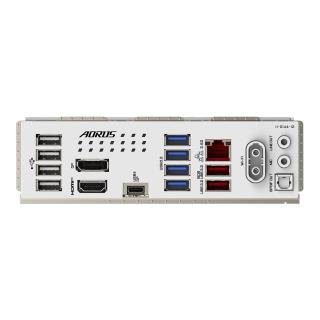

- Porty USB na panelu tylnym
- 4x USB 2.0 + 4x USB 3.0 + 2x USB 3.1 + 1x USB 4
- Gniazda USB na płycie głównej
- 4x USB 2.0 + 2x USB 3.0 + 1x USB 3.1 Type-C
- Port Wi-Fi
- IEEE 802.11a/b/g/n/ac/ax/be
- Port Bluetooth
- Bluetooth V5.4
- Uwagi do WiFi / BT
- Realtek® Wi-Fi 7 RTL8922AE (PCB rev. 1.0)
- - 802.11a, b, g, n, ac, ax, be, supporting 2.4/5/6 GHz carrier frequency
- bands
- - BLUETOOTH 5.4
- - Support for 11be 320MHz wireless standard
- MediaTek Wi-Fi 7 MT7925 (PCB rev. 1.1)
- - 802.11a, b, g, n, ac, ax, be, supporting 2.4/5/6 GHz carrier frequency
- bands
- - BLUETOOTH 5.4
- - Support for 11be 320MHz wireless standard
- - Actual data rate may vary depending on environment and equipment
- - Wi-Fi 7 features require Windows 11 SV3 to function properly
- - Wi-Fi 7 channels on 6 GHz band availability depends on country's regulati
- Port PS/2
- Brak
- Port szeregowy (COM)
- Brak
- Port równoległy (LPT)
- Brak
- Inne porty i gniazda
- CPU fan header
- CPU fan/water cooling pump header
- 3x system fan headers
- System fan/water cooling pump extension cable header
- 3x Addressable RGB Gen2 LED strip headers
- RGB LED strip header
- Front panel header
- Front Panel Audio header (AAFP)
- Trusted Platform Module header
- Power-on button(s)
- Reset button
- Q-Flash Plus button
- Reset jumper
- Clear CMOS jumper
- 2x SMA antenna connectors (2T2R)
- Gniazdo zasilania
- ATX (24-pin) + 2x ATX12V (8-pin)
- Wymiary [S x W] (mm)
- 305 x 244
- Opakowanie
- BOX
- Zawiera baterię / akumulator
- Tak
- Informacje dodatkowe
- Norton® Internet Security (OEM version)
- LAN bandwidth management software
- Support for Windows 11 64-bit
- BIOS: PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0
