- Waga
- 2.12 kg
- Gniazdo procesora
- Socket 1851
- Obsługiwane typy procesorów
- Intel Core Ultra Processors (series 2)
- Uwagi do procesora
- Supports Intel Turbo Boost Technology 2.0 and Intel Turbo Boost Max 3.0
- Refer to https://www.asus.com/support/download-center/ for CPU support list
- Intel Turbo Boost Max Technology 3.0 support depends on the CPU types
- Format płyty
- ATX
- BIOS
- 256 Mb Flash ROM, UEFI AMI BIOS; WOL by PME, PXE
- Chipset płyty głównej
- Intel® Z890
- Ilość złącz pamięci DDR5
- 4
- Maksymalna wielkość pamięci
- 192 GB
- Tryb pracy pamięci RAM
- Dual Channel
- Standard pamięci
- DDR5-8600+ (OC)
- Uwagi do pamięci RAM
- Support up to 8600+MT/s (OC), Non-ECC, Un-buffered ,Clocked Unbuffered DIMM
- Supports Intel® Extreme Memory Profile (XMP) memory module
- ASUS Enhanced Memory Profile III (AEMP III)
- Supports DIMM Fit
- Zintegrowany kontroler SATA
- Chipset+CPU: 4x SATA III 6Gb/s + 4x M.2
- Uwagi do kontrolera SATA
- Intel Core Ultra Processors (series 2):
- - M.2_1 slot (Key M), type 2242/2260/2280 (supports PCIe 5.0 x4 mode)
- - M.2_2 slot (Key M), type 2280 (supports PCIe 4.0 x4 mode)
- Intel® Z890 Chipset:
- - M.2_3 slot (Key M), type 2280/22110 (supports PCIe 4.0 x4 mode)
- - M.2_4 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 & SATA mode
- - 4 x SATA 6Gb/s ports
- Intel Rapid Storage Technology supports PCIe RAID 0/1/5/10, SATA RAID 0/1
- SATA RAID 0/1/5/10, M.2 slot from CPU only supports RAID 0/1/5
- Gniazda karty graficznej
- HDMI
- DisplayPort
- 2x Thunderbolt™ 4 (USB Type-C®)
- Uwagi do karty graficznej
- Graphics specifications may vary between CPU types. Please refer to
- www.intel.com for any updates.
- Supports max. 4K@60Hz as specified in DisplayPort 1.4
- Supports 4K@60Hz as specified in HDMI 2.1
- Supports up to 8K@60Hz x1 with DSC, maximum total bandwidth up to
- 23.8Gbps, for resolution support please check DisplayPort 2.1 specs
- Supports max. 4K@60Hz as specified in DisplayPort 1.4
- VGA resolution support depends on processors' or graphic cards' resolution
- Zintegrowana karta dźwiękowa
- Realtek® ALC1220P Codec 7.1-Channel High Definition Audio
- Gniazda karty dźwiękowej
- Wewnętrzne gniazdo audio przedniego panelu
- 5x Audio Jack
- Wyjście optyczne S/PDIF
- Uwagi do karty dźwiękowej
- Impedance sense for front and rear headphone outputs
- Internal audio Amplifier to enhance the highest quality sound for headphone
- and speakers
- Supports: Jack-detection, Multi-streaming, Front Panel Jack-retasking
- Supports up to 32-Bit/192 kHz playback
- Audio Shielding
- Premium audio capacitors
- Dedicated audio PCB layers
- Audio cover
- Unique de-pop circuit
- Due to limitations in HDA bandwidth, 32-Bit/192 kHz is not supported for
- 7.1 Surround Sound audio
- Złącza PCI Express x16
- 2
- Złącza PCI Express x4
- 1
- Złącza PCI Express x1
- 2
- Uwagi do złącz PCI
- Intel Core Ultra Processors (series 2):
- - 1 x PCIe 5.0 x16 slot
- Intel® Z890 Chipset:
- - 1 x PCIe 4.0 x16 slot (supports x4 mode)
- - 1 x PCIe 4.0 x4 slot
- - 2 x PCIe 4.0 x1 slots
- Please check the PCIe bifurcation table on the support site
- (https://www.asus.com/support/FAQ/1037507/)
- To ensure compatibility of the device installed, please refer to
- https://www.asus.com/support/download-center/
- Port LAN
- 1x 2,5 Gigabit LAN Intel®
- Uwagi do karty sieciowej
- TUF LANGuard
- Maksymalna ilość portów USB 2.0
- 4
- Maksymalna ilość portów USB 3.x
- 10
- Maksymalna ilość portów USB 4.0
- 1

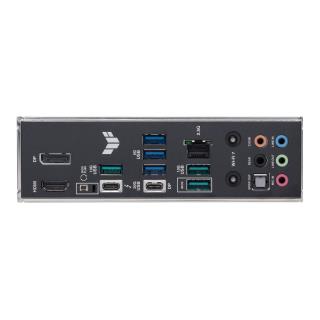

- Porty USB na panelu tylnym
- 3x USB 3.0 + 3x USB 3.1 + 1x USB 3.2 Type-C + 1x Thunerbolt 4 (USB Type-C)
- Gniazda USB na płycie głównej
- 2x USB 2.0 (4 porty) + 1x USB 3.0 (2 porty) + 1x USB 3.2 Type-C (1 port)
- Port Wi-Fi
- IEEE 802.11a/b/g/n/ac/ax/be
- Port Bluetooth
- Bluetooth V5.4
- Uwagi do WiFi / BT
- 2x2 Wi-Fi 7 (802.11be)
- Supports 2.4/5/6GHz frequency band
- Support Wi-Fi 7 320MHz bandwidth, up to 5.8Gbps transfer rate.
- Wi-Fi features may vary depending on the operating system
- For Windows 11, Wi-Fi 7 will require 24H2 or later version for full
- functions, Windows 11 21H2/22H2/23H2 only supports Wi-Fi 6E
- For Windows 10, only Wi-Fi 6 is supported
- Port PS/2
- Brak
- Port szeregowy (COM)
- 1x wewnętrzne gniazdo portu COM
- Port równoległy (LPT)
- Brak
- Inne porty i gniazda
- 4-pin CPU Fan header
- 4-pin CPU OPT Fan header
- 4-pin AIO Pump header
- 4x 4-pin Chassis Fan headers
- 3x Addressable Gen 2 header
- Chassis intrusion header
- 10-1 pin System Panel header
- BIOS FlashBack button
- Clear CMOS header
- Wi-Fi module with an antenna connector
- Gniazdo zasilania
- ATX (24-pin) + 2x ATX12V (8-pin)
- Wymiary [S x W] (mm)
- 305 x 244
- Opakowanie
- BOX
- Wyposażenie dodatkowe
- 2 x SATA 6Gb/s cables
- 1 x ASUS WiFi Q-Antenna
- 1 x M.2 Q-Slide package
- 2 x M.2 rubber packages
- 1 x Screw package for M.2 SSD
- 1 x TUF GAMING sticker
- 1 x Quick start guide
- Zawiera baterię / akumulator
- Tak
- Informacje dodatkowe
- Operating System: Windows 11 (22H2 & later)
