- Waga
- 1.91 kg
- Gniazdo procesora
- Socket 1851
- Obsługiwane typy procesorów
- Intel Core Ultra Processors (series 2)
- Uwagi do procesora
- Supports Intel Turbo Boost Technology 2.0 and Intel Turbo Boost Max 3.0
- Refer to https://www.asus.com/support/download-center/ for CPU support list
- Intel Turbo Boost Max Technology 3.0 support depends on the CPU types
- Format płyty
- Mini-ITX
- BIOS
- 256 Mb Flash ROM, UEFI AMI BIOS; WOL by PME, PXE
- Chipset płyty głównej
- Intel® Z890
- Ilość złącz pamięci DDR5
- 2
- Maksymalna wielkość pamięci
- 96 GB
- Tryb pracy pamięci RAM
- Dual Channel
- Standard pamięci
- DDR5-8800+ (OC)
- Uwagi do pamięci RAM
- Support up to 8800+MT/s (OC), Non-ECC, Un-buffered ,Clocked Unbuffered DIMM
- Supports Intel® Extreme Memory Profile (XMP) memory module
- ASUS Enhanced Memory Profile III (AEMP III)
- Supports DIMM Flex, Supports DIMM Fit, NitroPath DRAM Technology
- Zintegrowany kontroler SATA
- Chipset: 2x SATA III 6Gb/s + 2x M.2
- Uwagi do kontrolera SATA
- Intel Core Ultra Processors (series 2):
- - M.2_1 slot (Key M), type 2230/2242/2260/2280 (supports PCIe 5.0 x4 mode)
- - M.2_2 slot (Key M), type 2230/2242/2260/2280 (supports PCIe 5.0 x4 mode)
- - 2 x SATA 6Gb/s ports
- Intel® Rapid Storage Technology supports PCIe RAID 0/1/5, SATA RAID 0/1
- M.2_2 slot shares bandwidth with PCIEX16(G5). When M.2_2 slot is occupie
- occupied with SSD device, PCIEX16(G5) will run x8 only
- Install ROG FPS Card to support 2 x SATA 6Gb/s ports
- Gniazda karty graficznej
- HDMI
- 2x Thunderbolt™ 4 (USB Type-C®)
- Uwagi do karty graficznej
- Graphics specifications may vary between CPU types. Please refer to
- www.intel.com for any updates.
- Supports max. 8K@60Hz with DSC as specified in HDMI 2.1
- Supports up to 8K@60Hz x1 with DSC, maximum total bandwidth up to 23.8Gbps,
- for resolution support please check DisplayPort 2.1 specs
- VGA resolution support depends on processors' or graphic cards' resolution
- Zintegrowana karta dźwiękowa
- ROG High Definition Audio CODEC ALC4050
- Gniazda karty dźwiękowej
- Wewnętrzne gniazdo audio przedniego panelu
- Uwagi do karty dźwiękowej
- Supports: Jack-detection
- High quality 121 dB SNR stereo playback output and 94 dB SNR recording inpu
- Supports up to 32-Bit/384 kHz playback
- ROG Hyper-Grounding Technology
- ESS® SABRE9260Q DAC
- Premium audio capacitors
- All audio functions on ROG STRIX Z890-I GAMING WIFI are supported
- through the ROG STRIX HIVE II
- Złącza PCI Express x16
- 1
- Uwagi do złącz PCI
- Intel Core Ultra Processors (series 2):
- - 1 x PCIe 5.0 x16 slot*** (supports x16 mode)
- Please check the PCIe bifurcation table on the support site
- (https://www.asus.com/support/FAQ/1037507/)
- To ensure compatibility of the device installed, please refer to
- https://www.asus.com/support/download-center/
- Port LAN
- 1x 2,5 Gigabit LAN Intel®
- Uwagi do karty sieciowej
- ASUS LANGuard
- Maksymalna ilość portów USB 2.0
- 2
- Maksymalna ilość portów USB 3.x
- 8
- Maksymalna ilość portów USB 4.0
- 2

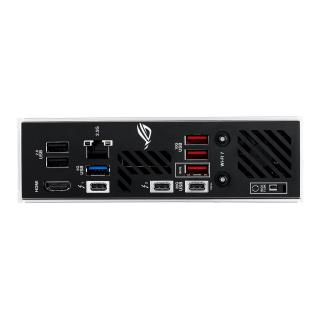

- Porty USB na panelu tylnym
- 2x USB 2.0 + 1x USB 3.0 + 3x USB 3.1 + 1x USB 3.2 Type-C + 2x Thunderbolt 4 (USB- Type-C)
- Gniazda USB na płycie głównej
- 1x USB 3.0 (2 porty) + 1x USB 3.2 Type-C
- Port Wi-Fi
- IEEE 802.11a/b/g/n/ac/ax/be
- Port Bluetooth
- Bluetooth V5.4
- Uwagi do WiFi / BT
- 2x2 Wi-Fi 7 (802.11be)
- Supports 2.4/5/6GHz frequency band
- Support Wi-Fi 7 320MHz bandwidth, up to 5.8Gbps transfer rate.
- Wi-Fi features may vary depending on the operating system
- For Windows 11, Wi-Fi 7 will require 24H2 or later version for full
- functions, Windows 11 21H2/22H2/23H2 only supports Wi-Fi 6E
- For Windows 10, only Wi-Fi 6 is supported
- Port PS/2
- Brak
- Port szeregowy (COM)
- Brak
- Port równoległy (LPT)
- Brak
- Inne porty i gniazda
- 4-pin CPU Fan header
- 4-pin CPU OPT Fan header
- 4-pin AIO Pump header
- 4-pin Chassis Fan header
- Extra Flow Fan header
- 2x Addressable Gen 2 header
- Thermal Sensor header
- Alteration PCIe mode switch
- CPU Over Voltage jumper
- Clear CMOS button(s)
- BIOS FlashBack button
- Wi-Fi module with an antenna connector
- Gniazdo zasilania
- ATX (24-pin) + ATX12V (8-pin)
- Wymiary [S x W] (mm)
- 170 x 170
- Opakowanie
- BOX
- Wyposażenie dodatkowe
- 1 x ROG USB2.0 splitter cable
- 2 x SATA 6Gb/s cables
- 1 x Panel Cable
- 1 x ROG FPS Card
- 1 x ROG STRIX HIVE II
- 1 x USB Type-C® power connection cable
- 1 x ASUS WiFi Q-Antenna
- 1 x Cable ties package
- 1 x ROG key chain
- 1 x ROG Strix stickers
- 1 x Quick start guide
- Zawiera baterię / akumulator
- Tak
- Informacje dodatkowe
- Operating System: Windows 11 (22H2 later)
- ROG STRIX HIVE II:
- - 2 x USB 10Gbps ports ( 1 x USB Type-C®+ 1 x Type-A)
- ROG FPS Card:
- - 2 x USB 2.0 header(s) additional 3 USB 2.0 ports
