- Waga
- 1.78 kg
- Gniazdo procesora
- Socket 1851
- Obsługiwane typy procesorów
- Intel Core Ultra Processors (series 2)
- Uwagi do procesora
- Supports Intel Turbo Boost Technology 2.0 and Intel Turbo Boost Max 3.0
- Refer to https://www.asus.com/support/download-center/ for CPU support list
- Intel Turbo Boost Max Technology 3.0 support depends on the CPU types
- Format płyty
- ATX
- BIOS
- 256 (128+128) Mb Flash ROM, UEFI AMI BIOS; WOL by PME, PXE
- Chipset płyty głównej
- Intel® Z890
- Ilość złącz pamięci DDR5
- 4
- Maksymalna wielkość pamięci
- 192 GB
- Tryb pracy pamięci RAM
- Dual Channel
- Standard pamięci
- DDR5-7600+ (OC)
- Uwagi do pamięci RAM
- Support up to 7600+MT/s (OC), Non-ECC, Un-buffered ,Clocked Unbuffered DIMM
- Supports Intel® Extreme Memory Profile (XMP) memory module
- ASUS Enhanced Memory Profile III (AEMP III)
- Supports DIMM Fit
- Zintegrowany kontroler SATA
- Chipset+CPU: 4x SATA III 6Gb/s + 4x M.2
- Uwagi do kontrolera SATA
- Intel Core Ultra Processors (series 2):
- - M.2_1 slot (Key M), type 2280/22110 (supports PCIe 5.0 x4 mode)
- - M.2_2 slot (Key M), type 2280 (supports PCIe 4.0 x4 mode)
- Intel® Z890 Chipset:
- - M.2_3 slot (Key M), type 2280/22110 (supports PCIe 4.0 x4 mode)
- - M.2_4 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 & SATA mode
- - 4 x SATA 6Gb/s ports
- Intel Rapid Storage Technology supports PCIe RAID 0/1/5/10,
- SATA RAID 0/1/5/10, M.2 slot from CPU only supports RAID 0/1/5
- Gniazda karty graficznej
- HDMI
- DisplayPort
- 1x USB 20Gbps port (USB Type-C®) supports DisplayPort
- Uwagi do karty graficznej
- Graphics specifications may vary between CPU types. Please refer to
- www.intel.com for any updates.
- Supports max. 4K@60Hz as specified in DisplayPort 1.4
- Supports 4K@60Hz as specified in HDMI 2.1
- Supports max. 4K@120Hz as specified in DisplayPort 1.4
- VGA resolution support depends on processors' or graphic cards' resolution
- Zintegrowana karta dźwiękowa
- Realtek ® 7.1 Surround Sound High Definition Audio CODEC
- Gniazda karty dźwiękowej
- Wewnętrzne gniazdo audio przedniego panelu
- 3x Audio Jack
- Wewnętrzne gniazdo S/PDIF Out
- Uwagi do karty dźwiękowej
- Supports: Jack-detection, Multi-streaming, Front Panel Jack-retasking
- Supports up to 24-Bit/192 kHz playback
- Audio Shielding
- Premium audio capacitors
- Dedicated audio PCB layers
- A chassis with an HD audio module in the front panel is required to
- support 7.1 Surround Sound audio output
- Złącza PCI Express x16
- 4
- Uwagi do złącz PCI
- Intel Core Ultra Processors (series 2):
- - 1 x PCIe 5.0 x16 slot
- Intel® Z890 Chipset:
- - 2 x PCIe 4.0 x16 slots (support x4 mode)
- - 1 x PCIe 4.0 x16 slot (supports x1 mode)
- Please check the PCIe bifurcation table on the support site
- (https://www.asus.com/support/FAQ/1037507/)
- To ensure compatibility of the device installed, please refer to
- https://www.asus.com/support/download-center/
- Port LAN
- 1x 2,5 Gigabit LAN Realtek®
- Maksymalna ilość portów USB 2.0
- 8
- Maksymalna ilość portów USB 3.x
- 9

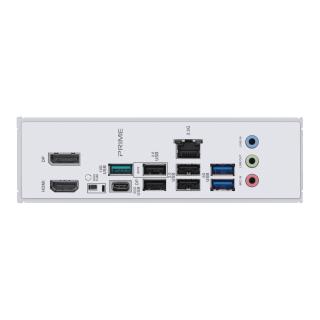

- Porty USB na panelu tylnym
- 4x USB 2.0 + 2x USB 3.0 + 1x USB 3.1 + 1x USB 3.2 Type-C
- Gniazda USB na płycie głównej
- 2x USB 2.0 (4 porty) + 2x USB 3.0 (4 porty) + 1x USB 3.1 Type-C (1 port)
- Port Wi-Fi
- Nie
- Port Bluetooth
- Nie
- Port PS/2
- Brak
- Port szeregowy (COM)
- 1x wewnętrzne gniazdo portu COM
- Port równoległy (LPT)
- Brak
- Inne porty i gniazda
- 4-pin CPU Fan header
- 4-pin CPU OPT Fan header
- 4-pin AIO Pump header
- 4x 4-pin Chassis Fan headers
- 3x Addressable Gen 2 header
- AURA RGB header
- SPI TPM header (14-1pin)
- 10-1 pin System Panel header
- BIOS FlashBack button
- Clear CMOS button(s)
- Gniazdo zasilania
- ATX (24-pin) + 2x ATX12V (8-pin)
- Wymiary [S x W] (mm)
- 305 x 244
- Opakowanie
- BOX
- Wyposażenie dodatkowe
- 2 x SATA 6Gb/s cables
- 1 x M.2 rubber package
- 2 x Screw packages for M.2 SSD
- 1 x Quick start guide
- Zawiera baterię / akumulator
- Tak
- Informacje dodatkowe
- Operating System:
- - Windows 11 (22H2 & later)
- - Windows 10 64-bit(21H2 & later)
