- Waga
- 1.7 kg
- Gniazdo procesora
- Socket AM5
- Obsługiwane typy procesorów
- AMD Ryzen™ (AM5)
- Uwagi do procesora
- Supports AMD Ryzen 9000/ 8000/ 7000 Series Desktop Processors
- Format płyty
- M-ATX
- Chipset płyty głównej
- AMD B850
- Ilość złącz pamięci DDR5
- 4
- Maksymalna wielkość pamięci
- 256 GB
- Tryb pracy pamięci RAM
- Dual Channel
- Standard pamięci
- DDR5-8200 (OC)
- DDR5-8000 (OC)
- DDR5-7800 (OC)
- DDR5-7600 (OC)
- DDR5-7400 (OC)
- DDR5-7200 (OC)
- DDR5-7000 (OC)
- DDR5-6800 (OC)
- DDR5-6600 (OC)
- DDR5-6400 (OC)
- DDR5-6200 (OC)
- DDR5-6000 (OC)
- DDR5-5800 (OC)
- DDR5-5600 (OC)
- DDR5-5600
- DDR5-5200
- DDR5-4800
- Uwagi do pamięci RAM
- Ryzen 9000 Series Processors max. overclocking frequency:
- - 1DPC 1R Max speed up to 8200+ MT/s
- - 1DPC 2R Max speed up to 6400+ MT/s
- - 2DPC 1R Max speed up to 6400+ MT/s
- - 2DPC 2R Max speed up to 6000+ MT/s
- Supports AMD POR Speed and JEDEC Speed
- Supports Memory Overclocking and AMD EXPO
- Supports Non-ECC, Un-buffered memory
- Supports CUDIMM, Clock Driver bypass mode only
- Zintegrowany kontroler SATA
- Chipset+CPU: 4x SATA III 6Gb/s - RAID 0,1,10 + 2x M.2 - RAID 0, 1
- Uwagi do kontrolera SATA
- M.2_1 Source (From CPU) supports up to PCIe 5.0 x4 , supports 2280/2260
- devices
- M.2_2 Source (From CPU) supports up to PCIe 4.0 x4 , supports 2280/2260
- devices
- M2_1 slot:
- - Supports up to PCIe 5.0 x4 (For Ryzen™ 9000/ 7000 Series processors)
- - Supports up to PCIe 4.0 x4 (For Ryzen™ 8000 Series processors)
- M2_2 slot:
- - Supports up to PCIe 4.0 x4
- - Supports up to PCIe 4.0 x2 (For Ryzen™ 8500/ 8300 Series processors)
- Wbudowana karta graficzna
- Brak lub AMD Radeon™ Graphics (zależy od procesora)
- Gniazda karty graficznej
- HDMI
- DisplayPort
- Uwagi do karty graficznej
- Support HDMITM 2.1, maximum resolution of 4K 60Hz
- Support DisplayPort 1.4, maximum resolution of 4K 60Hz
- Available only on processors featuring integrated graphics
- Graphics specifications may vary depending on the CPU installed
- Zintegrowana karta dźwiękowa
- Realtek® ALC 897 7.1-Channel High Definition Audio CODEC
- Gniazda karty dźwiękowej
- 3x Audio Jack
- Wewnętrzne gniazdo audio przedniego panelu
- Złącza PCI Express x16
- 4
- Uwagi do złącz PCI
- PCI_E1 Gen PCIe 5.0 supports up to x16 (From CPU)
- PCI_E2 Gen PCIe 3.0 supports up to x1 (From Chipset)
- PCI_E3 Gen PCIe 3.0 supports up to x1 (From Chipset)
- PCI_E4 Gen PCIe 4.0 supports up to x4 (From Chipset)
- PCI_E1 slot:
- - Supports PCIe 5.0 x16 (For Ryzen™ 9000/ 7000 Series processors)
- - Supports PCIe 4.0 x8 (For Ryzen™ 8700/ 8600/ 8400 Series processors)
- - Supports PCIe 4.0 x4 (For Ryzen™ 8500/ 8300 Series processor)
- Port LAN
- 1x 5 Gigabit LAN Realtek® 8126
- Maksymalna ilość portów USB 2.0
- 4
- Maksymalna ilość portów USB 3.x
- 11

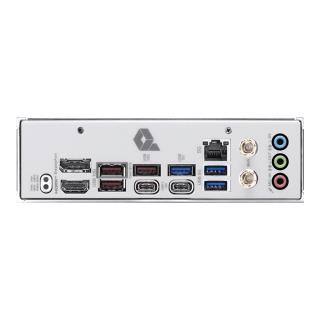

- Porty USB na panelu tylnym
- 3x USB 3.0 + 3x USB 3.1 + 2x USB 3.1 Type-C
- Gniazda USB na płycie głównej
- 2x USB 2.0 (4 porty) + 1x USB 3.0 (2 porty) + 1x USB 3.1 Type-C (1 port)
- Port Wi-Fi
- IEEE 802.11a/b/g/n/ac/ax/be
- Port Bluetooth
- Bluetooth V5.4
- Uwagi do WiFi / BT
- Wi-Fi 7 Solution
- The Wireless module is pre-installed in the M.2 (Key-E) slot
- Supports MU-MIMO TX/RX, 2.4GHz/ 5GHz/ 6GHz (160MHz) up to 2.9Gbps
- Supports Bluetooth® 5.4, MLO, 4KQAM
- 6GHz band support may depend on every country’s regulations and Wi-Fi 7
- will be ready in Windows 11 version 24H2
- The Bluetooth version may be updated, please refer to the Wi-Fi chipset
- vendor’s website for details. Bluetooth 5.4 will be ready in Windows 11
- version 24H2.
- Port PS/2
- Brak
- Port szeregowy (COM)
- 1x wewnętrzne gniazdo portu COM
- Port równoległy (LPT)
- Brak
- Inne porty i gniazda
- CPU Fan
- Combo Fan (Pump_Sys Fan)
- 3x System Fan
- 2x Front Panel
- Chassis Intrusion (JCI)
- Tuning Controller Connector
- 3x Addressable V2 RGB LED connector
- RGB LED connector
- Gniazdo modułu TPM
- 4x EZ Debug LED
- Flash BIOS Button
- Clear CMOS button(s)
- 2x Antenna Ports
- Gniazdo zasilania
- ATX (24-pin) + 2x ATX12V (8-pin) + PCIe (8-pin)
- Wymiary [S x W] (mm)
- 243,84 x 243,84
- Opakowanie
- BOX
- Wyposażenie dodatkowe
- SATA Cable
- EZ Wi-Fi antenna
- Quick Installation Guide
- European Union Regulatory Notice
- EZ M.2 Clip II Remover
- 2x EZ M.2 Clips II
- Zawiera baterię / akumulator
- Tak
- Informacje dodatkowe
- Support for Windows 11 64-bit
- Gwarancja producenta [mies.]
- 36
