- Waga
- 6.4 kg
- Gniazdo procesora
- Socket AM5
- Obsługiwane typy procesorów
- AMD Ryzen™ (AM5)
- Uwagi do procesora
- Supports AMD Ryzen 9000/ 8000/ 7000 Series Desktop Processors
- Format płyty
- Extended-ATX
- Chipset płyty głównej
- AMD X870
- Ilość złącz pamięci DDR5
- 4
- Maksymalna wielkość pamięci
- 256 GB
- Tryb pracy pamięci RAM
- Dual Channel
- Standard pamięci
- DDR5-4800
- DDR5-5000
- DDR5-5200
- DDR5-5400
- DDR5-5600 (OC)
- DDR5-5800 (OC)
- DDR5-6000 (OC)
- DDR5-6200 (OC)
- DDR5-6400 (OC)
- DDR5-6600 (OC)
- DDR5-6800 (OC)
- DDR5-7000 (OC)
- DDR5-7200 (OC)
- DDR5-7400 (OC)
- DDR5-7600 (OC)
- DDR5-7800 (OC)
- DDR5-8000 (OC)
- DDR5-8200 (OC)
- DDR5-8266 (OC)
- DDR5-8333 (OC)
- DDR5-8400 (OC)
- Uwagi do pamięci RAM
- Memory Support DDR5 8400 - 5600 (OC) MT/s / 5600 - 4800 (JEDEC) MT/s
- Ryzen™ 9000 Series Processors max. overclocking frequency:
- - 1DPC 1R Max speed up to 8400+ MT/s
- - 1DPC 2R Max speed up to 6400+ MT/s
- - 2DPC 1R Max speed up to 6400+ MT/s
- - 2DPC 2R Max speed up to 4800+ MT/s
- Supports AMD POR Speed and JEDEC Speed
- Supports Memory Overclocking and AMD EXPO
- Supports Dual-Channel mode
- Supports Non-ECC, Un-buffered memory
- Supports CUDIMM, Clock Driver bypass mode only
- Zintegrowany kontroler SATA
- Chipset+CPU: 4x SATA III 6Gb/s - RAID 0,1,10 + 7x M.2 - RAID 0, 1, 10
- Uwagi do kontrolera SATA
- - M.2_1 Source (From CPU) supports up to PCIe 5.0 x4,
- supports 2280/2260 devices
- - M.2_2 Source (From CPU) supports up to PCIe 5.0 x4,
- supports 2280/2260 devices
- - M.2_3 Source (From Chipset) supports up to PCIe 4.0 x4,
- supports 22110/2280 devices
- - M.2_4 Source (From Chipset) supports up to PCIe 4.0 x2,
- supports 2280/2260 devices
- - M.2_5 Source (From Chipset) supports up to PCIe 4.0 x4,
- supports 2280/2260 devices
- - M.2_1 Source (via M.2 XPANDER-Z SLIDER GEN5) supports up to PCIe 5.0 x4,
- supports 2280 devices
- - M.2_2 Source (via M.2 XPANDER-Z SLIDER GEN5) supports up to PCIe 5.0 x4,
- supports 2280 devices
- M.2_1:
- - Supports up to PCIe 5.0 x4 (For Ryzen™ 9000/ 7000 Series processors)
- - Supports up to PCIe 4.0 x4 (For Ryzen™ 8000 Series processors)
- M.2_2:
- - Supports up to PCIe 5.0 x4 (For Ryzen™ 9000/ 7000 Series processors)
- - Supports up to PCIe 4.0 x4 (For Ryzen™ 8700/ 8600/ 8400 Series processors
- - The M2_2 slot will be unavailable when using
- Ryzen™ 8500/ 8300 Series processors.
- M2_4:
- PCI_E3 slot will run at x2 speed when installing device in the M2_4 slot.
- You can switch PCI_E3 slot to x4 in the BIOS, but this will disable the
- M2_4 slot.
- Supports onboard 5x M.2 slots and additional 2x M.2 slots via M.2 card
- Please refer to the manual for M.2 SSD heatsink restrictions
- Wbudowana karta graficzna
- Brak lub AMD Radeon™ Graphics (zależy od procesora)
- Gniazda karty graficznej
- 2x USB4 Type-C
- Uwagi do karty graficznej
- USB4® port, supporting DisplayPort 1.4 with HBR3 over USB Type-C, maximum
- resolution of 4K@60Hz
- Available only on processors featuring integrated graphics
- Graphics specifications may vary depending on the CPU installed.
- Zintegrowana karta dźwiękowa
- Realtek® ALC4082 Codec + ESS9219Q Combo DAC/HPA
- Gniazda karty dźwiękowej
- Wewnętrzne gniazdo audio przedniego panelu
- 2x Audio Jack
- Wyjście optyczne S/PDIF
- Uwagi do karty dźwiękowej
- Supports up to 32-Bit/384 kHz playback on front panel
- Złącza PCI Express x16
- 2
- Złącza PCI Express x4
- 1
- Uwagi do złącz PCI
- - PCI_E1 Gen PCIe 5.0 supports up to x16 (From CPU)
- - PCI_E2 Gen PCIe 5.0 supports up to x8 (From CPU)
- - PCI_E3 Gen PCIe 4.0 supports up to x4 (From Chipset)
- PCI_E1 & PCI_E2 slots:
- - Supports up to PCIe 5.0 x16/ x0 or x8/ x8
- (For Ryzen™9000/ 7000 Series processors)
- - Supports up to PCIe 4.0 x8/ x0
- (For Ryzen™ 8700/ 8600/ 8400 Series processors)
- - Supports up to PCIe 4.0 x4/ x0 (For Ryzen™ 8500/ 8300 Series processors)
- PCI_E3 slot:
- - Supports up to PCIe 4.0 x4
- PCI_E3 slot will run at x2 speed when installing device in the M2_4 slot.
- You can switch PCI_E3 slot to x4 in the BIOS, but this will disable the
- M2_4 slot. Please refer to the PCIe configuration table in the manual for
- more details.
- Port LAN
- 1x 10 Gigabit LAN Marvell® AQC113CS
- 1x 5 Gigabit LAN Realtek® 8126
- Maksymalna ilość portów USB 2.0
- 4
- Maksymalna ilość portów USB 3.x
- 19
- Maksymalna ilość portów USB 4.0
- 2

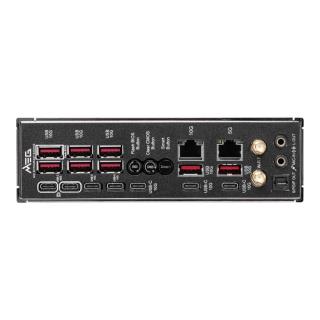

- Porty USB na panelu tylnym
- 8x USB 3.1 + 5x USB 3.1 Type-C + 2x USB4 Type-C
- Gniazda USB na płycie głównej
- 4x USB 2.0 + 4x USB 3.0 + 1x USB 3.1 Type-C + 1 USB 3.2 Type-C
- Port Wi-Fi
- IEEE 802.11a/b/g/n/ac/ax/be
- Port Bluetooth
- Bluetooth V5.4
- Uwagi do WiFi / BT
- Wi-Fi 7 Solution
- The Wireless module is pre-installed in the M.2 (Key-E) slot
- Supports MU-MIMO TX/RX, 2.4GHz/ 5GHz/ 6GHz* (320MHz) up to 5.8Gbps
- Supports Bluetooth 5.4, MLO, 4KQAM
- 6GHz band support may depend on every country’s regulations and Wi-Fi 7
- will be ready in Windows 11 version 24H2
- The Bluetooth version may be updated, please refer to the Wi-Fi chipset
- vendor’s website for details
- Bluetooth 5.4 will be ready in Windows 11 version 24H2
- Port PS/2
- Brak
- Port szeregowy (COM)
- Brak
- Port równoległy (LPT)
- Brak
- Inne porty i gniazda
- CPU Fan
- 2x Combo Fan (Pump_Sys Fan)
- EZ Conn-header (JAF_2)
- 2x Front Panel
- Chassis Intrusion (JCI)
- 2x Thermal Sensor connectors
- Tuning Controller Connector
- Addressable V2 RGB LED connector
- V-check point
- Front Type-C Quick Charge Connector(PD_PWR1)
- Gniazdo zasilania
- ATX (24-pin) + 2x ATX12V (8-pin) + PCIe (8-pin)
- Wymiary [S x W] (mm)
- 304,8 x 277
- Opakowanie
- BOX

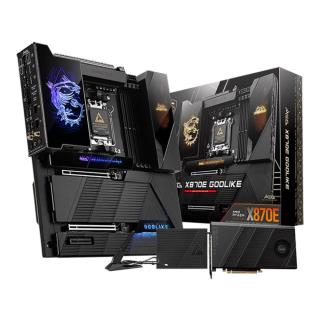

- Wyposażenie dodatkowe
- EZ Wi-Fi antenna
- EZ M.2 Clip II Removal
- Zawiera baterię / akumulator
- Tak
- Informacje dodatkowe
- Support for Windows 11 64-bit
