- Waga
- 2.1 kg
- Gniazdo procesora
- Socket AM5
- Obsługiwane typy procesorów
- AMD Ryzen™ (AM5)
- Uwagi do procesora
- Supports AMD Ryzen 9000/ 8000/ 7000 Series Desktop Processors
- Format płyty
- ATX
- Chipset płyty głównej
- AMD B850
- Ilość złącz pamięci DDR5
- 4
- Maksymalna wielkość pamięci
- 256 GB
- Tryb pracy pamięci RAM
- Dual Channel
- Standard pamięci
- DDR5-8400 (OC)
- DDR5-8200 (OC)
- DDR5-8000 (OC)
- DDR5-7900 (OC)
- DDR5-7800 (OC)
- DDR5-7600 (OC)
- DDR5-7400 (OC)
- DDR5-7200 (OC)
- DDR5-7000 (OC)
- DDR5-6800 (OC)
- DDR5-6000 (OC)
- DDR5-6400 (OC)
- DDR5-6200 (OC)
- DDR5-6000 (OC)
- DDR5-5800 (OC)
- DDR5-5600 (OC)
- DDR5-5600
- DDR5-5400
- DDR5-5200
- DDR5-5000
- DDR5-4800
- Uwagi do pamięci RAM
- Ryzen 9000 Series Processors max. overclocking frequency:
- - 1DPC 1R Max speed up to 8400+ MT/s
- - 1DPC 2R Max speed up to 6400+ MT/s
- - 2DPC 1R Max speed up to 6400+ MT/s
- - 2DPC 2R Max. speed up to 4800+ MHz
- Supports AMD POR Speed and JEDEC Speed
- Supports Memory Overclocking and AMD EXPO
- Supports Non-ECC, Un-buffered memory
- Supports CUDIMM, Clock Driver bypass mode only
- Zintegrowany kontroler SATA
- Chipset+CPU: 4x SATA III 6Gb/s + 4x M.2
- Uwagi do kontrolera SATA
- - M.2_1 Source (From CPU) supports up to PCIe 5.0 x4 ,
- supports 22110/2280 devices
- - M.2_2 Source (From CPU) supports up to PCIe 5.0 x4 ,
- supports 2280/2260 devices
- - M.2_3 Source (From Chipset) supports up to PCIe 4.0 x2 ,
- supports 2280/2260 devices
- - M.2_4 Source (From Chipset) supports up to PCIe 4.0 x4 ,
- supports 2280/2260 devices
- M.2_1 slot:
- - Supports up to PCIe 5.0 x4 (For Ryzen™ 9000/ 7000 Series processors)
- - Supports up to PCIe 4.0 x4 (For Ryzen™ 8000 Series processors)
- M.2_2 slot:
- - Supports up to PCIe 5.0 x4 (For Ryzen™ 9000/ 7000 Series processors)
- - Supports up to PCIe 4.0 x4 (For Ryzen™ 8700/ 8600 / 8400 Series processor
- - Supports up to PCIe 4.0 x2 (For Ryzen™ 8500/ 8300 Series processors)
- Supports RAID 0, RAID 1 and RAID 10* for M.2 NVMe storage devices
- RAID 10 for M.2 NVMe storage devices is only supp. by AMD Ryzen 9000/7000
- Wbudowana karta graficzna
- Brak lub AMD Radeon™ Graphics (zależy od procesora)
- Gniazda karty graficznej
- HDMI
- Uwagi do karty graficznej
- Support HDMITM 2.1 with FRL port, supporting a max. resolution of 8K 60Hz
- Available only on processors featuring integrated graphics
- Graphics specifications may vary depending on the CPU installed
- Zintegrowana karta dźwiękowa
- Realtek® ALC 4080 7.1-Channel USB High Performance Audio CODEC
- Gniazda karty dźwiękowej
- 2x Audio Jack
- Wyjście optyczne S/PDIF
- Wewnętrzne gniazdo audio przedniego panelu
- Uwagi do karty dźwiękowej
- Supports up to 32-bit/384kHz playback on front panel
- Złącza PCI Express x16
- 3
- Uwagi do złącz PCI
- - PCI_E1 Gen PCIe 5.0 supports up to x16 (From CPU)
- - PCI_E2 Gen PCIe 3.0 supports up to x1 (From Chipset)
- - PCI_E3 Gen PCIe 4.0 supports up to x4 (From Chipset)
- PCI_E1 slot:
- - Supports PCIe 5.0 x16 (For Ryzen™ 9000/ 7000 Series processors)
- - Supports PCIe 4.0 x8 (For Ryzen™ 8700/ 8600/ 8400 Series processors)
- - Supports PCIe 4.0 x4 (For Ryzen™ 8500/ 8300 Series processor)
- PCI_E3 slot will run x2 speed when installing devices in the M.2_3 slot
- Port LAN
- 1x 5 Gigabit LAN Realtek® 8126VB
- Maksymalna ilość portów USB 2.0
- 8
- Maksymalna ilość portów USB 3.x
- 11

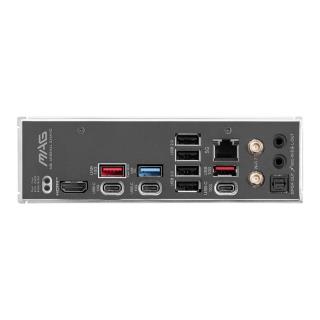

- Porty USB na panelu tylnym
- 4x USB 2.0 + 1x USB 3.0 + 2x USB 3.1 + 3x USB 3.1 Type-C
- Gniazda USB na płycie głównej
- 2x USB 2.0 (4 porty) + 2x USB 3.0 (4 porty) + 1x USB 3.2 Type-C (1 port)
- Port Wi-Fi
- IEEE 802.11a/b/g/n/ac/ax/be
- Port Bluetooth
- Bluetooth V5.4
- Uwagi do WiFi / BT
- Wi-Fi 7
- The Wireless module is pre-installed in the M.2 (Key-E) slot
- Supports MU-MIMO TX/RX, 2.4GHz/ 5GHz/ 6GHz* (320MHz) up to 5.8Gbps
- Supports Bluetooth 5.4, MLO, 4KQAM
- 6GHz band support may depend on every country’s regulations and Wi-Fi 7
- will be ready in Windows 11 version 24H2
- The Bluetooth version may be updated, please refer to the Wi-Fi chipset
- vendor’s website for details
- Bluetooth 5.4 will be ready in Windows 11 version 24H2
- Port PS/2
- Brak
- Port szeregowy (COM)
- Brak
- Port równoległy (LPT)
- Brak
- Inne porty i gniazda
- CPU Fan
- Combo Fan (Pump_Sys Fan)
- 6x System Fan
- EZ Conn-header (JAF_1)
- Złącze czujnika otwarcia obudowy
- 3x Addressable V2 RGB LED connector
- RGB LED connector
- Gniazdo modułu TPM
- 4x EZ Debug LED
- 2x Antenna Ports
- Flash BIOS Button
- Clear CMOS button(s)
- Gniazdo zasilania
- ATX (24-pin) + 2x ATX12V (8-pin) + PCIe (8-pin)
- Wymiary [S x W] (mm)
- 243,84 x 304,8

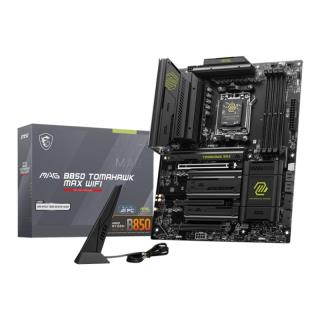

- Opakowanie
- BOX
- Wyposażenie dodatkowe
- SATA Cable
- Cable Sticker
- EZ Wi-Fi antenna
- Quick Installation Guide
- European Union Regulatory Notice
- EZ M.2 Clips II
- EZ M.2 Clip II Remover
- 1 to 3 EZ Conn-Cable (V2)
- EZ Front Panel Cable
- Zawiera baterię / akumulator
- Tak
- Informacje dodatkowe
- Support for Windows 11 64-bit
