- Waga
- 1.96 kg
- Gniazdo procesora
- Socket 1700
- Obsługiwane typy procesorów
- Intel Core i3 12th Generation
- Intel Core i5 12th Generation
- Intel Core i7 12th Generation
- Intel Core i9 12th Generation
- Intel Core i3 13th Generation
- Intel Core i5 13th Generation
- Intel Core i7 13th Generation
- Intel Core i9 13th Generation
- Intel Core i3 14th Generation
- Intel Core i5 14th Generation
- Intel Core i7 14th Generation
- Intel Core i9 14th Generation
- Intel Celeron™ (Socket 1700)
- Intel Pentium™ (Socket 1700)
- Uwagi do procesora
- Please refer to "CPU Support List" for more information
- Format płyty
- ATX
- BIOS
- 1 x 256 Mbit AMI UEFI BIOS; PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5
- Chipset płyty głównej
- Intel® Z790
- Ilość złącz pamięci DDR5
- 4
- Maksymalna wielkość pamięci
- 192 GB
- Tryb pracy pamięci RAM
- Dual Channel
- Standard pamięci
- DDR5-4400
- DDR5-4800
- DDR5-5200
- DDR5-5400
- DDR5-5600
- DDR5-5800 (OC)
- DDR5-6000 (OC)
- DDR5-6200 (OC)
- DDR5-6400 (OC)
- DDR5-6600 (OC)
- DDR5-6800 (OC)
- DDR5-7000 (OC)
- DDR5-7200 (OC)
- DDR5-7400 (OC)
- DDR5-7600 (OC)
- Uwagi do pamięci RAM
- Support for ECC Un-buffered DIMM 1Rx8/2Rx8 memory modules
- (operate in non-ECC mode)
- Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules
- Support for Extreme Memory Profile (XMP) memory modules
- Zintegrowany kontroler SATA
- Chipset+CPU: 4x SATA III 6Gb/s + 3x M.2
- Uwagi do kontrolera SATA
- CPU:
- - 1 x M.2 connector (Socket 3, M key, type 22110/2280 PCIe 4.0 x4/x2 SSD
- support) (M2A_CPU)
- Chipset:
- - 1 x M.2 connectors (Socket 3, M key, type 2280 PCIe 4.0 x4/x2 SSD
- support) (M2P_SB)
- - 1 x M.2 connectors (Socket 3, M key, type 2280 SATA and PCIe 4.0 x4/x2
- SSD support) (M2M_SB)
- - 4 x SATA 6Gb/s connectors
- RAID 0, RAID 1, RAID 5, and RAID 10 support for NVMe SSD storage devices
- RAID 0, RAID 1, RAID 5, and RAID 10 support for SATA storage devices
- Wbudowana karta graficzna
- Intel® HD Graphics
- Gniazda karty graficznej
- HDMI
- DisplayPort
- Uwagi do karty graficznej
- 1x HDMI port, supporting a maximum resolution of 4096x2160@60 Hz
- - Support for HDMI 2.1 version and HDCP 2.3
- - Support for native HDMI 2.1 TMDS compatible ports
- 1x DisplayPort, supporting a maximum resolution of 4096x2304@60 Hz
- - Support for DisplayPort 1.2 version and HDCP 2.3
- Graphics specifications may vary depending on CPU support
- Zintegrowana karta dźwiękowa
- Realtek ® 7.1 Surround Sound High Definition Audio CODEC
- Gniazda karty dźwiękowej
- Wewnętrzne gniazdo audio przedniego panelu
- Wyjście optyczne S/PDIF
- 3x Audio Jack
- Złącza PCI Express x16
- 3
- Złącza PCI Express x1
- 2
- Uwagi do złącz PCI
- CPU:
- - 1 x PCI Express x16 slot, supporting PCIe 5.0 and running at x16 (PCIEX16
- Chipset:
- - 1 x PCI Express x16 slot, supporting PCIe 4.0 and running at x4 (PCIEX4)
- - 1 x PCI Express x16 slot, supporting PCIe 3.0 and running at x1 (PCIEX1_4
- - 2 x PCI Express x1 slots, supporting PCIe 3.0 and running at x1
- (PCIEX1_2, PCIEX1_3)
- Port LAN
- 1x 2,5 Gigabit LAN 100/1000/2500 Mb/s (Realtek®)
- Maksymalna ilość portów USB 2.0
- 6
- Maksymalna ilość portów USB 3.x
- 9

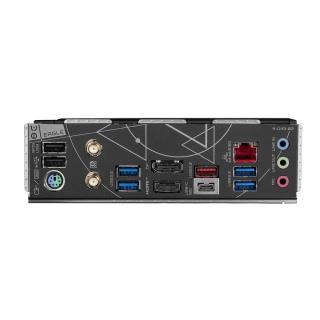

- Porty USB na panelu tylnym
- 2x USB 2.0 + 4x USB 3.0 + 1x USB 3.1 + 1x USB 3.2 Type-C
- Gniazda USB na płycie głównej
- 2x USB 2.0 (4 porty) + 1x USB 3.0 (2 porty) + 1x USB 3.1 Type-C (1 port)
- Port Wi-Fi
- IEEE 802.11a/b/g/n/ac/ax
- Port Bluetooth
- Bluetooth V5.3
- Uwagi do WiFi / BT
- Support for 11ax 160MHz wireless standard
- Actual data rate may vary depending on environment and equipment
- Port PS/2
- Port combo klawiatury/myszy PS/2
- Port szeregowy (COM)
- Brak
- Port równoległy (LPT)
- Brak
- Inne porty i gniazda
- CPU fan header
- CPU fan/water cooling pump header
- 3x system fan headers
- System fan/water cooling pump header
- 2x Addressable LED strip headers
- 2x Thunderbolt™ add-in card connectors
- Front panel header
- Gniazdo modułu TPM
- Przycisk Reset
- Q-Flash Plus button
- Clear CMOS jumper
- Gniazdo zasilania
- ATX (24-pin) + 2x ATX12V (8-pin)
- Wymiary [S x W] (mm)
- 305 x 244
- Opakowanie
- BOX
- Zawiera baterię / akumulator
- Tak
- Informacje dodatkowe
- Operating System: Support for Windows 10/11 64-bit
- Bundled Software
- - Norton® Internet Security (OEM version)
- - LAN bandwidth management software
