- Waga
- 1.04 kg
- Gniazdo procesora
- Socket AM5
- Obsługiwane typy procesorów
- AMD Ryzen™
- Uwagi do procesora
- AMD Ryzen™ 9000 Series Processors
- AMD Ryzen™ 8000 Series Processors
- AMD Ryzen™ 7000 Series Processors
- Format płyty
- Micro-ATX
- BIOS
- 256 Mbit flash AMI UEFI; PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0
- Chipset płyty głównej
- AMD B840
- Ilość złącz pamięci DDR5
- 4
- Maksymalna wielkość pamięci
- 256 GB
- Tryb pracy pamięci RAM
- Dual Channel
- Standard pamięci
- DDR5-8200 (OC)
- DDR5-8000 (OC)
- DDR5-7800 (OC)
- DDR5-7600 (OC)
- DDR5-7200 (OC)
- DDR5-7000 (OC)
- DDR5-6800 (OC)
- DDR5-6666 (OC)
- DDR5-6600 (OC)
- DDR5-6400 (OC)
- DDR5-6200 (OC)
- DDR5-6000 (OC)
- DDR5-5600 (OC)
- DDR5-5200
- DDR5-4800
- DDR5-4400
- Uwagi do pamięci RAM
- Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules
- Support for AMD EXtended Profiles for Overclocking (AMD EXPO™) and
- Extreme Memory Profile (XMP) memory modules
- Zintegrowany kontroler SATA
- Chipset+CPU: 4x SATA III 6Gb/s - RAID 0,1,10 + 2x M.2 - RAID 0,1,5,10
- Uwagi do kontrolera SATA
- 1x M.2 connector (M2A_CPU), , integrated in the CPU, supporting Socket 3,
- M key, type 2580/2280 SSDs:
- - AMD Ryzen™ 9000/7000 Series Processors support PCIe 4.0 x4/x2 SSDs
- - AMD Ryzen™ 8000 Series-Phoenix 1 Processors support PCIe 4.0 x4/x2 SSDs
- - AMD Ryzen™ 8000 Series-Phoenix 2 Processors support PCIe 4.0 x4/x2 SSDs
- - 1 x M.2 connector (M2B_CPU), integrated in the CPU, supporting Socket 3,
- M key, type, type 25110/22110/2580/2280 SSDs:
- - AMD Ryzen™ 9000/7000 Series Processors support PCIe 4.0 x4/x2 SSDs
- - AMD Ryzen™ 8000 Series-Phoenix 1 Processors support PCIe 4.0 x4/x2 SSDs
- - AMD Ryzen™ 8000 Series-Phoenix 2 Processors support PCIe 4.0 x2 SSDs
- 4 x SATA 6Gb/s connectors:
- RAID 5 is only available on AMD Ryzen™ 9000 Series Processors.
- Wbudowana karta graficzna
- Brak lub AMD Radeon™ Graphics (zależy od procesora)
- Gniazda karty graficznej
- HDMI
- 2x DisplayPort
- Uwagi do karty graficznej
- Integrated Graphics Processor with AMD Radeon™ Graphics support:
- - 1 x HDMI port, supporting a maximum resolution of 4096x2160@60 Hz
- Support for HDMI 2.1 version, HDCP 2.3, and HDR
- Support for native HDMI 2.1 TMDS compatible ports
- - 2 x DisplayPorts, supporting a maximum resolution of 3840x2160@144 Hz
- Support for DisplayPort 1.4 version
- Graphics specifications may vary depending on CPU support
- Support for up to quad-display at the same time
- Zintegrowana karta dźwiękowa
- Realtek ® 7.1 Surround Sound High Definition Audio CODEC
- Gniazda karty dźwiękowej
- 3x Audio Jack
- Wewnętrzne gniazdo audio przedniego panelu
- Uwagi do karty dźwiękowej
- You can change the functionality of an audio jack using the audio software
- To configure 7.1-channel audio, access the audio software for audio setting
- Złącza PCI Express x16
- 2
- Uwagi do złącz PCI
- 1 x PCI Express x16 slot (PCIEX16), integrated in the CPU:
- - AMD Ryzen™ 9000/7000 Series Processors support PCIe 4.0 x16 mode
- - AMD Ryzen™ 8000 Series-Phoenix 1 Processors support PCIe 4.0 x8 mode
- - AMD Ryzen™ 8000 Series-Phoenix 2 Processors support PCIe 4.0 x4 mode
- The PCIEX16 slot can only support a graphics card or an NVMe SSD
- If only one graphics card is to be installed, be sure to install it in
- the PCIEX16 slot
- Chipset:
- - 1 x PCI Express x16 slot, supporting PCIe 3.0 and running at x4 (PCIEX4)
- Port LAN
- 1x 2,5 Gigabit LAN 100/1000/2500 Mb/s (Realtek®)
- Maksymalna ilość portów USB 2.0
- 8
- Maksymalna ilość portów USB 3.x
- 7

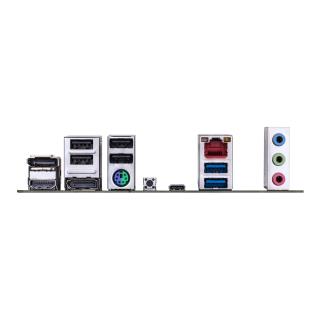

- Porty USB na panelu tylnym
- 4x USB 2.0 + 2x USB 3.0 + 1x USB 3.0 Type C
- Gniazda USB na płycie głównej
- 2x USB 2.0 (4 porty) + 1x USB 3.0 (2 porty) + 1x USB 3.0 Type-C (1 port)
- Port Wi-Fi
- Nie
- Port Bluetooth
- Nie
- Port PS/2
- Port combo klawiatury/myszy PS/2
- Port szeregowy (COM)
- 1x wewnętrzne gniazdo portu COM
- Port równoległy (LPT)
- Brak
- Inne porty i gniazda
- CPU fan header
- CPU fan/water cooling pump header
- System fan header
- System fan/water cooling pump header
- 2x Addressable RGB Gen2 LED strip header
- RGB LED Header
- Gniazdo modułu TPM
- Reset jumper
- Clear CMOS jumper
- Q-Flash Plus button
- Gniazdo zasilania
- ATX (24-pin) + ATX12V (8-pin)
- Wymiary [S x W] (mm)
- 244 x 244
- Opakowanie
- BOX
- Zawiera baterię / akumulator
- Tak
- Informacje dodatkowe
- Support for Q-Flash
- Support for Q-Flash Plus
- Support for Smart Backup
- Support for Windows 10 and Windows 11 64-bit
- Bundled Software:
- - Norton® Internet Security (OEM version)
- - LAN bandwidth management software
