- Waga
- 2.2 kg
- Gniazdo procesora
- Socket AM5
- Obsługiwane typy procesorów
- AMD Ryzen™
- Uwagi do procesora
- Support for: AMD Ryzen™ 7000 / Ryzen™ 8000 / Ryzen™ 9000 Series Processors
- Format płyty
- ATX
- BIOS
- 256 Mbit flash AMI UEFI; PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0
- Chipset płyty głównej
- AMD B650
- Ilość złącz pamięci DDR5
- 4
- Maksymalna wielkość pamięci
- 256 GB
- Tryb pracy pamięci RAM
- Dual Channel
- Standard pamięci
- DDR5-4400
- DDR5-4800
- DDR5-5200
- DDR5-5600 (OC)
- DDR5-6000 (OC)
- DDR5-6200 (OC)
- DDR5-6400 (OC)
- DDR5-6600 (OC)
- DDR5-6666 (OC)
- DDR5-6800 (OC)
- DDR5-7000 (OC)
- DDR5-7200 (OC)
- DDR5-7600 (OC)
- DDR5-7800 (OC)
- DDR5-8000 (OC)
- Uwagi do pamięci RAM
- Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules
- Support for AMD EXtended Profiles for Overclocking (AMD EXPO™) and Extreme
- Memory Profile (XMP) memory modules
- Zintegrowany kontroler SATA
- Chipset+CPU: 4x SATA III 6Gb/s - RAID 0,1,10 + 3x M.2 - RAID 0, 1, 10
- Uwagi do kontrolera SATA
- 1x M.2 connector (M2A_CPU), integrated in the CPU, supporting Socket 3,
- M key, type 25110/22110/2580/2280 SSDs:
- - AMD Ryzen™ 7000 Series Processors support PCIe 5.0 x4/x2 SSDs
- - AMD Ryzen™ 8000 Series-Phoenix 1/Phoenix 2 Processors support
- PCIe 4.0 x4/x2 SSDs
- 1 x M.2 connector (M2B_CPU), integrated in the CPU,
- supporting Socket 3, M key, type 22110/2280 SSDs:
- - AMD Ryzen™ 7000 Series Processors support PCIe 4.0 x4/x2 SSDs
- - AMD Ryzen™ 8000 Series-Phoenix 1 Processors support PCIe 4.0 x4/x2 SSDs
- - AMD Ryzen™ 8000 Series-Phoenix 2 Processors support PCIe 4.0 x2 SSDs
- 1 x M.2 connector (M2C_SB), integrated in the Chipset, supporting Socket 3,
- M key, type 22110/2280 PCIe 4.0 x4/x2 SSDs
- 4 x SATA 6Gb/s connectors
- RAID 0, RAID 1, and RAID 10 support for NVMe SSD storage devices
- RAID 0, RAID 1, and RAID 10 support for SATA storage devices
- Wbudowana karta graficzna
- Brak lub AMD Radeon™ Graphics (zależy od procesora)
- Gniazda karty graficznej
- 2x HDMI
- USB Type-C/DisplayPort
- Uwagi do karty graficznej
- Integrated Graphics Processor with AMD Radeon™ Graphics support:
- - 1 x HDMI port, supporting a maximum resolution of 4096x2160@60 Hz
- Support for HDMI 2.1 version and HDCP 2.3
- Support for native HDMI 2.1 TMDS compatible ports
- - 1 x HDMI port, supporting a maximum resolution of 1920x1080@30 Hz
- Support for HDMI 1.4 version
- - 1 x USB Type-C® port, supporting USB 3.2 Gen 2 and DisplayPort video
- outputs and a maximum resolution of 3840x2160@144 Hz
- Support for DisplayPort 1.4 version and HDR
- Graphics specifications may vary depending on CPU support
- Zintegrowana karta dźwiękowa
- Realtek® HD Audio CODEC
- Gniazda karty dźwiękowej
- 3x Audio Jack
- Wewnętrzne gniazdo audio przedniego panelu
- Uwagi do karty dźwiękowej
- You can change the functionality of an audio jack using the audio software
- To configure 7.1-channel audio, access the audio software for audio setting
- Złącza PCI Express x16
- 3
- Uwagi do złącz PCI
- CPU:
- - 1 x PCI Express x16 slot (PCIEX16), integrated in the CPU
- - AMD Ryzen™ 7000 Series Processors support PCIe 5.0 x16 mode
- - AMD Ryzen™ 8000 Series-Phoenix 1 Processors support PCIe 4.0 x8 mode
- - AMD Ryzen™ 8000 Series-Phoenix 2 Processors support PCIe 4.0 x4 mode
- The PCIEX16 slot can only support a graphics card or an NVMe SSD
- If only one graphics card is to be installed, be sure to install it in
- the PCIEX16 slot
- Chipset:
- - 2 x PCI Express x16 slot, , supporting PCIe 3.0 and running
- at x1 (PCIEX1_1/2)
- Port LAN
- 1x 2,5 Gigabit LAN 100/1000/2500 Mb/s (Realtek®)
- Maksymalna ilość portów USB 2.0
- 8
- Maksymalna ilość portów USB 3.x
- 11

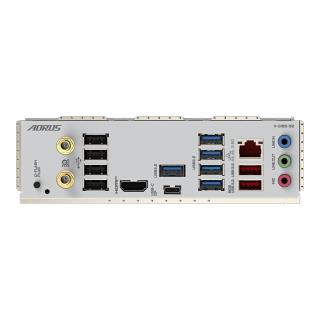

- Porty USB na panelu tylnym
- 4x USB 2.0 + 5x USB 3.0 + 2x USB 3.1 + 1x USB 3.1 Type-C
- Gniazda USB na płycie głównej
- 2x USB 2.0 (2 porty) + 1x USB 3.0 (2 porty) + 1x USB 3.2 Type-C (1 port)
- Port Wi-Fi
- IEEE 802.11a/b/g/n/ac/ax
- Port Bluetooth
- Bluetooth V5.3
- Uwagi do WiFi / BT
- Realtek® Wi-Fi 6E RTL8852CE(PCB rev. 1.0):
- - WIFI a, b, g, n, ac, ax, supporting 2.4/5/6 GHz carrier frequency bands
- - BLUETOOTH 5.3
- - Support for 11ax 160MHz wireless standard
- Intel® Wi-Fi 6E AX210 (PCB rev. 1.1):
- - WIFI a, b, g, n, ac, ax, supporting 2.4/5/6 GHz carrier frequency bands
- - BLUETOOTH 5.3
- - Support for 11ax 160MHz wireless
- Port PS/2
- Brak
- Port szeregowy (COM)
- Brak
- Port równoległy (LPT)
- Brak
- Inne porty i gniazda
- CPU fan header
- CPU fan/water cooling pump header
- 3x system fan headers
- System fan/water cooling pump header
- 3x Addressable RGB Gen2 LED strip headers
- RGB LED strip header
- Front panel header
- Front Panel Audio header (AAFP)
- Trusted Platform Module header
- Reset button
- Reset jumper
- Clear CMOS jumper
- Gniazdo zasilania
- ATX (24-pin) + ATX12V (8-pin) + ATX12V (4-pin)
- Wymiary [S x W] (mm)
- 305 x 244
- Opakowanie
- BOX
- Zawiera baterię / akumulator
- Tak
- Informacje dodatkowe
- Bundled Software
- - Norton® Internet Security (OEM version)
- - LAN bandwidth management software
- System operacyjny:
- - Support for Windows 11 64-bit
- - Support for Windows 10 64-bit
- 1 x Trusted Platform Module header (For the GC-TPM2.0 SPI/GC-TPM2.0 SPI 2.0
- / GC-TPM2.0 SPI V2 module only)
- This USB Type-C® port supports a maximum speed of 40Gbps as a USB4 port
- when pairing the Ryzen 8000 series processors.
