- Waga
- 1.7 kg
- Gniazdo procesora
- Socket AM5
- Obsługiwane typy procesorów
- AMD Ryzen™ (AM5)
- Uwagi do procesora
- Support for: AMD Ryzen™ 7000 Series Processors & 8000 Series Processors
- Format płyty
- ATX
- BIOS
- 256 Mbit Flash AMI UEFI BIOS,PnP 1.0a,DMI 2.7,WfM 2.0,SM BIOS 2.7,ACPI 5.0
- Chipset płyty głównej
- AMD B650
- Ilość złącz pamięci DDR5
- 4
- Maksymalna wielkość pamięci
- 256 GB
- Tryb pracy pamięci RAM
- Dual Channel
- Standard pamięci
- DDR5-4400
- DDR5-4800
- DDR5-5200
- DDR5-5600 (OC)
- DDR5-6000 (OC)
- DDR5-6200 (OC)
- DDR5-6400 (OC)
- DDR5-6600 (OC)
- DDR5-6800 (OC)
- DDR5-7000 (OC)
- DDR5-7200 (OC)
- DDR5-7600 (OC)
- Uwagi do pamięci RAM
- Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules
- Support for AMD EXtended Profiles for Overclocking (AMD EXPO™) and
- Extreme Memory Profile (XMP) memory modules
- Support up to 256 GB (64 GB single DIMM capacity)
- Zintegrowany kontroler SATA
- Chipset+CPU: 4x SATA III 6Gb/s - RAID 0,1,10 + 3x M.2 - RAID 0, 1, 10
- Uwagi do kontrolera SATA
- 1 x M.2 connector (M2A_CPU), integrated in the CPU, supporting Socket 3,
- M key, type 25110/2580 SSDs:
- - AMD Ryzen™ 7000 Series Processors support PCIe 5.0 x4/x2 SSDs
- - AMD Ryzen™ 8000 Series-Phoenix 1 Processors support PCIe 4.0 x4/x2 SSDs
- - AMD Ryzen™ 8000 Series-Phoenix 2 Processors support PCIe 4.0 x4/x2 SSDs
- 1 x M.2 connector (M2P_CPU), integrated in the CPU, supporting Socket 3,
- M key, type 22110/2280 SSDs:
- - AMD Ryzen™ 7000 Series Processors support PCIe 4.0 x2 SSDs
- - AMD Ryzen™ 8000 Series-Phoenix 1 Processors support PCIe 4.0 x2 SSDs
- - AMD Ryzen™ 8000 Series-Phoenix 2 Processors support PCIe 4.0 x2 SSDs
- Chipset:
- 1 x M.2 connector (Socket 3, M key, type 22110/2280 PCIe 4.0 x4/x2 SSD
- support) (M2C_SB)
- 4 x SATA 6Gb/s connectors
- RAID 0, RAID 1, and RAID 10 support for NVMe SSD storage devices
- RAID 0, RAID 1, and RAID 10 support for SATA storage devices
- Wbudowana karta graficzna
- Brak lub AMD Radeon™ Graphics (zależy od procesora)
- Gniazda karty graficznej
- HDMI
- DisplayPort
- Uwagi do karty graficznej
- 1x DisplayPort, supporting a maximum resolution of 3840x2160@144 Hz
- Support for DisplayPort 1.4 version
- 1 x HDMI port, supporting a maximum resolution of 4096x2160@60 Hz
- Support for HDMI 2.1 version and HDCP 2.3
- Support native HDMI 2.1 TMDS compatible ports
- Graphics specifications may vary depending on CPU support
- Zintegrowana karta dźwiękowa
- Realtek® 8-Channel High Definition Audio CODEC
- Gniazda karty dźwiękowej
- Wewnętrzne gniazdo audio przedniego panelu
- 3x Audio Jack
- Uwagi do karty dźwiękowej
- You can change the functionality of an audio jack using the audio software
- To configure 7.1channel audio, access the audio software for audio settings
- Złącza PCI Express x16
- 4
- Uwagi do złącz PCI
- 1 x PCI Express x16 slot (PCIEX16), integrated in the CPU:
- - AMD Ryzen™ 7000 Series Processors support PCIe 4.0 x16 mode
- - AMD Ryzen™ 8000 Series-Phoenix 1 Processors support PCIe 4.0 x8 mode
- - AMD Ryzen™ 8000 Series-Phoenix 2 Processors support PCIe 4.0 x4 mode
- * The PCIEX16 slot can only support a graphics card or an NVMe SSD. If only
- one graphics card is to be installed, be sure to install it in the PCIEX16
- slot
- 2 x PCI Express x16 slots (PCIEX1_1/PCIEX1_2), integrated in the CPU
- supporting PCIe 3.0 and running at x1
- he PCIEX1_1 and PCIEX1_2 slots become unavailable when an AMD Ryzen™ 8000
- Series-Phoenix 2 processor is used
- 1 x PCI Express x16 slot (PCIEX1_3), integrated in the Chipset, supporting
- PCIe 3.0 and running at x1
- Port LAN
- 1x 1 Gigabit LAN Realtek®
- Uwagi do karty sieciowej
- 1 Gbps/100 Mbps/10 Mbps
- Maksymalna ilość portów USB 2.0
- 12
- Maksymalna ilość portów USB 3.x
- 6

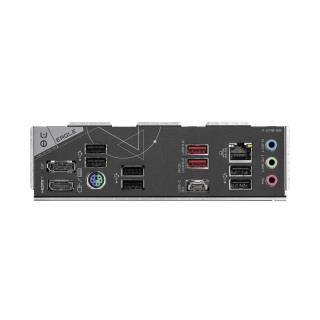

- Porty USB na panelu tylnym
- 6x USB 2.0 + 2x USB 3.1 + 1x USB 3.0 Type-C
- Gniazda USB na płycie głównej
- 3x USB 2.0 (6 portów) + 1x USB 3.0 (2 porty) + 1x USB 3.0 Type-C (1 port)
- Port Wi-Fi
- Nie
- Port Bluetooth
- Nie
- Port PS/2
- Port combo klawiatury/myszy PS/2
- Port szeregowy (COM)
- 1x wewnętrzne gniazdo portu COM
- Port równoległy (LPT)
- Brak
- Inne porty i gniazda
- CPU fan header
- CPU fan/water cooling pump header
- 2x system fan headers
- System fan/water cooling pump header
- 3x Addressable RGB Gen2 LED strip headers
- RGB LED strip header
- Front panel header
- Front Panel Audio header (AAFP)
- Gniazdo modułu TPM
- Q-Flash Plus button
- Clear CMOS jumper
- Gniazdo zasilania
- ATX (24-pin) + ATX12V (8-pin)
- Wymiary [S x W] (mm)
- 305 x 224

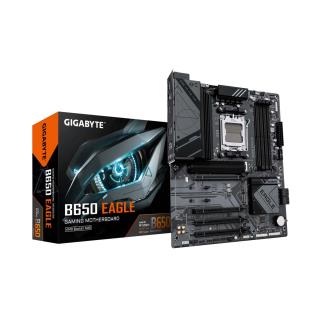

- Opakowanie
- BOX
- Wyposażenie dodatkowe
- Norton® Internet Security (OEM version), LAN bandwidth management software
- Zawiera baterię / akumulator
- Tak
- Informacje dodatkowe
- Windows® 11 64-bit, Windows® 10 64-bit
- 1x Trusted Platform Module header (For the GC-TPM2.0 SPI/GC-TPM2.0 SPI 2.0/
- GC-TPM2.0 SPI V2 module only)
