- Waga
- 1.66 kg
- Gniazdo procesora
- Socket AM5
- Obsługiwane typy procesorów
- AMD Ryzen™ (AM5)
- Uwagi do procesora
- AMD Socket AM5 for AMD Ryzen™ 9000 & 8000 & 7000 Series Desktop Processors
- Format płyty
- M-ATX
- BIOS
- 256 Mb Flash ROM, UEFI AMI BIOS
- Chipset płyty głównej
- AMD B850
- Ilość złącz pamięci DDR5
- 4
- Maksymalna wielkość pamięci
- 192 GB
- Tryb pracy pamięci RAM
- Dual Channel
- Standard pamięci
- DDR5-8000+ (OC)
- Uwagi do pamięci RAM
- ECC and Non-ECC Un-buffered DIMM
- Supports AMD Extended Profiles for Overclocking (EXPO™)
- ASUS Enhanced Memory Profile (AEMP)
- Adjustments will be made based on the specifications of mass-produced
- memory products available on the market.
- Supported memory types, data rate (speed), and number of DRAM modules vary
- depending on the CPU and memory configuration, for more information please
- refer to CPU/Memory Support list under the Support tab of product
- information site or visit https://www.asus.com/support/download-center/.
- Non-ECC, un-buffered DDR5 memory supports On-Die ECC function.
- Zintegrowany kontroler SATA
- Chipset+CPU: 4x SATA III 6Gb/s + 3x M.2
- Uwagi do kontrolera SATA
- AMD Ryzen™ 9000 & 7000 Series Desktop Processors:
- - M.2_1 slot (Key M), type 2280 (supports PCIe 5.0 x4 mode)
- - M.2_2 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 mode)
- AMD Ryzen™ 8000 Series Desktop Processors:
- - M.2_1 slot (Key M), type 2280 (supports PCIe 4.0 x4 mode)
- - M.2_2 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4/x2 mode)
- AMD B850 Chipset:
- - M.2_3 slot (Key M), type 2280 (supports PCIe 4.0 x4 mode)
- 4 x SATA 6Gb/s ports
- Specifications vary by CPU types
- AMD RAIDXpert2 Technology:
- - Ryzen™ 9000 Series Processors: RAID 0/1/5/10
- - Ryzen™ 8000 Series Processors: RAID 0/1
- - Ryzen™ 7000 Series Processors: RAID 0/1/10
- Gniazda karty graficznej
- HDMI
- DisplayPort
- Uwagi do karty graficznej
- Graphics specifications may vary between CPU types. Please refer to
- AMD CPU specifications
- Supports 4K@60Hz as specified in HDMI 2.1
- Supports max. 8K@30Hz as specified in DisplayPort 1.4
- Zintegrowana karta dźwiękowa
- Realtek ALC1220P 7.1 Surround Sound High Definition Audio CODEC
- Gniazda karty dźwiękowej
- 5x Audio Jack
- Wewnętrzne gniazdo audio przedniego panelu
- Uwagi do karty dźwiękowej
- Impedance sense for front and rear headphone outputs
- Internal audio Amplifier to enhance the highest quality sound for headphone
- and speakers
- Supports: Jack-detection, Multi-streaming, Front Panel Jack-retasking
- High quality 120 dB SNR stereo playback output and 113 dB SNR recording
- input (Line-in)
- Supports up to 32-Bit/192 kHz playback
- Audio Shielding
- Premium audio capacitors
- Dedicated audio PCB layers
- Audio cover
- Unique de-pop circuit
- Due to limitations in HDA bandwidth, 32-Bit/192 kHz is not supported for
- 7.1 Surround Sound audio.
- Złącza PCI Express x16
- 2
- Złącza PCI Express x1
- 1
- Uwagi do złącz PCI
- AMD Ryzen™ 9000 & 7000 Series Desktop Processors:
- - 1 x PCIe 5.0 x16 slot (supports x16 mode)
- AMD Ryzen™ 8000 Series Desktop Processors:
- - 1 x PCIe 4.0 x16 slot (supports x8/x4 mode)
- AMD B850 Chipset:
- 1 x PCIe 4.0 x1 slot
- Specifications vary by CPU types
- Port LAN
- 1x 2,5 Gigabit LAN Realtek®
- Uwagi do karty sieciowej
- TUF LANGuard
- Maksymalna ilość portów USB 2.0
- 8
- Maksymalna ilość portów USB 3.x
- 11

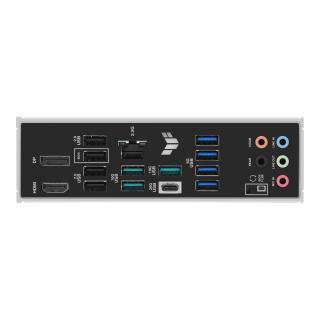

- Porty USB na panelu tylnym
- 4x USB 2.0 + 4x USB 3.0 + 3x USB 3.1 + 1x USB 3.2 Type-C
- Gniazda USB na płycie głównej
- 2x USB 2.0 (4 porty) + 1x USB 3.0 (2 porty) + 1x USB 3.1 Type-C (1 port)
- Port Wi-Fi
- Nie
- Port Bluetooth
- Nie
- Port PS/2
- Brak
- Port szeregowy (COM)
- 1x wewnętrzne gniazdo portu COM
- Port równoległy (LPT)
- Brak
- Inne porty i gniazda
- 4-pin CPU Fan header
- 4-pin CPU OPT Fan header
- 4-pin AIO Pump header
- 3x 4-pin Chassis Fan headers
- 3x Addressable Gen 2 header
- Clear CMOS button(s)
- Chassis intrusion header
- Front Panel Audio header (AAFP)
- 10-1 pin System Panel header
- BIOS FlashBack button
- Gniazdo zasilania
- ATX (24-pin) + 2x ATX12V (8-pin)
- Wymiary [S x W] (mm)
- 244 x 244
- Wyposażenie dodatkowe
- 2 x SATA 6Gb/s cables
- 1 x M.2 rubber package
- 2 x Screw packages for M.2 SSD
- 1 x Quick start guide
- 1 x TUF GAMING sticker
- Zawiera baterię / akumulator
- Tak
- Informacje dodatkowe
- Operating System: Windows 11, Windows 10 64-bit
- Manageability: WOL by PME, PXE
