- Waga
- 1.94 kg
- Gniazdo procesora
- Socket AM5
- Obsługiwane typy procesorów
- AMD Ryzen™ (AM5)
- Uwagi do procesora
- AMD Socket AM5 for AMD Ryzen™ 9000 & 8000 & 7000 Series Desktop Processors
- Format płyty
- ATX
- BIOS
- 256 Mb Flash ROM, UEFI AMI BIOS
- Chipset płyty głównej
- AMD B850
- Ilość złącz pamięci DDR5
- 4
- Maksymalna wielkość pamięci
- 192 GB
- Tryb pracy pamięci RAM
- Dual Channel
- Standard pamięci
- DDR5-8000+ (OC)
- Uwagi do pamięci RAM
- Supports AMD Extended Profiles for Overclocking (EXPO™)
- ASUS Enhanced Memory Profile (AEMP)
- Adjustments will be made based on the specifications of mass-produced
- memory products available on the market.
- Supported memory types, data rate (speed), and number of DRAM modules vary
- depending on the CPU and memory configuration, for more information
- please refer to CPU/Memory Support list under the Support tab of product
- information site or visit https://www.asus.com/support/download-center/.
- Zintegrowany kontroler SATA
- Chipset+CPU: 4x SATA III 6Gb/s + 3x M.2
- Uwagi do kontrolera SATA
- AMD Ryzen™ 9000 & 7000 Series Desktop Processors:
- - M.2_1 slot (Key M), type 2280 (supports PCIe 5.0 x4 mode)
- - M.2_2 slot (Key M), type 2242/2260/2280/22110 (supports PCIe 4.0 x4 mode)
- AMD Ryzen™ 8000 Series Desktop Processors:
- - M.2_1 slot (Key M), type 2280 (supports PCIe 4.0 x4 mode)
- - M.2_2 slot (Key M), type 2242/2260/2280/22110
- (supports PCIe 4.0 x4/x2 mode)
- AMD B850 Chipset:
- - M.2_3 slot (Key M), type 2280 (supports PCIe 4.0 x4 mode)**
- 4 x SATA 6Gb/s ports
- Specifications vary by CPU types
- The PCIEX16(G4) shares bandwidth with M.2_3. The PCIEX16(G4) will be
- disabled when M.2_3 runs.
- AMD RAIDXpert2 Technology:
- - Ryzen™ 9000 Series Processors: RAID 0/1/5/10
- - Ryzen™ 8000 Series Processors: RAID 0/1
- - Ryzen™ 7000 Series Processors: RAID 0/1/10
- Gniazda karty graficznej
- HDMI
- DisplayPort
- Uwagi do karty graficznej
- Graphics specifications may vary between CPU types. Please refer to
- AMD CPU specifications
- Supports 4K@60Hz as specified in HDMI 2.1
- Supports max. 8K@30Hz as specified in DisplayPort 1.4
- Zintegrowana karta dźwiękowa
- Realtek ALC1220P 7.1 Surround Sound High Definition Audio CODEC
- Gniazda karty dźwiękowej
- 5x Audio Jack
- Wewnętrzne gniazdo audio przedniego panelu
- Uwagi do karty dźwiękowej
- Impedance sense for front and rear headphone outputs
- Internal audio Amplifier to enhance the highest quality sound for
- headphone and speakers
- Supports: Jack-detection, Multi-streaming, Front Panel Jack-retasking
- High quality 120 dB SNR stereo playback output and 113 dB SNR recording
- input (Line-in)
- Supports up to 32-Bit/192 kHz playback
- Audio Shielding
- Premium audio capacitors
- Dedicated audio PCB layers
- Audio cover
- Unique de-pop circuit
- Due to limitations in HDA bandwidth, 32-Bit/192 kHz is not supported for
- 7.1 Surround Sound audio.
- Złącza PCI Express x16
- 3
- Złącza PCI Express x1
- 2
- Uwagi do złącz PCI
- AMD Ryzen™ 9000 & 7000 Series Desktop Processors:
- - 1 x PCIe 5.0 x16 slot (supports x16 mode)
- AMD Ryzen™ 8000 Series Desktop Processors:
- - 1 x PCIe 4.0 x16 slot (supports x8/x4 mode)**
- AMD B850 Chipset:
- - 2 x PCIe 4.0 x16 slots (support x1 mode)***
- - 2 x PCIe 4.0 x1 slots
- Specifications vary by CPU types.
- The PCIEX16(G4) shares bandwidth with M.2_3. The PCIEX16(G4) will be
- disabled when M.2_3 runs.
- Port LAN
- 1x 2,5 Gigabit LAN Realtek®
- Uwagi do karty sieciowej
- TUF LANGuard
- Maksymalna ilość portów USB 2.0
- 6
- Maksymalna ilość portów USB 3.x
- 11

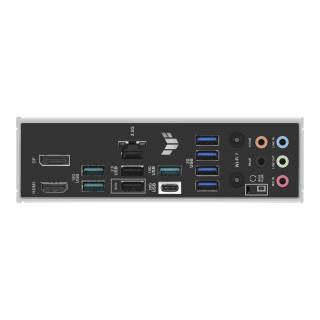

- Porty USB na panelu tylnym
- 2x USB 2.0 + 4x USB 3.0 + 3x USB 3.1 + 1x USB 3.2 Type-C
- Gniazda USB na płycie głównej
- 2x USB 2.0 (4 porty) + 1x USB 3.0 (2 porty) + 1x USB 3.1 Type-C (1 port)
- Port Wi-Fi
- IEEE 802.11a/b/g/n/ac/ax/be
- Port Bluetooth
- Bluetooth V5.4
- Uwagi do WiFi / BT
- 2x2 Wi-Fi 7 (802.11be)
- Supports 2.4/5/6GHz frequency band
- Supports Wi-Fi 7 160MHz bandwidth, up to 2.9Gbps transfer rate
- Wi-Fi features may vary depending on the operating system
- For Windows 11, Wi-Fi 7 will require 24H2 or later version for full
- functions, Windows 11 21H2/22H2/23H2 only support Wi-Fi 6E.
- For Windows 10, please note that no driver is available, please refer to
- the Wi-Fi chipset vendor's website for details.
- Wi-Fi 6GHz frequency band and bandwidth regulatory may vary between
- countries
- The Bluetooth® version may vary, please refer to the Wi-Fi module
- manufacturer's website for the latest specifications.
- Port PS/2
- Brak
- Port szeregowy (COM)
- 1x wewnętrzne gniazdo portu COM
- Port równoległy (LPT)
- Brak
- Inne porty i gniazda
- 4-pin CPU Fan header
- 4-pin CPU OPT Fan header
- 4-pin AIO Pump header
- 4x 4-pin Chassis Fan headers
- 3x Addressable Gen 2 header
- Clear CMOS header
- Chassis intrusion header
- Front Panel Audio header (AAFP)
- 10-1 pin System Panel header
- Thunderbolt™ (USB4®) header
- BIOS FlashBack button
- Gniazdo zasilania
- ATX (24-pin) + 2x ATX12V (8-pin)
- Wymiary [S x W] (mm)
- 305 x 244

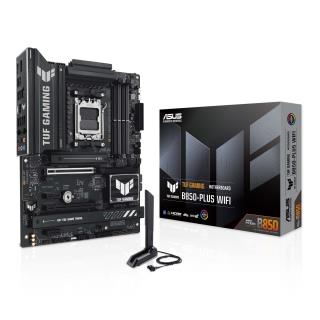

- Wyposażenie dodatkowe
- 2 x SATA 6Gb/s cables
- 1 x ASUS WiFi Q-Antenna
- 1 x TUF GAMING sticker
- 2 x M.2 rubber packages
- 1 x Quick start guide
- Zawiera baterię / akumulator
- Tak
- Informacje dodatkowe
- Operating System: Windows 11
- Manageability: WOL by PME, PXE
