- Waga
- 2.87 kg
- Gniazdo procesora
- Socket AM5
- Obsługiwane typy procesorów
- AMD Ryzen™ (AM5)
- Uwagi do procesora
- AMD Socket AM5 for AMD Ryzen™ 9000 & 8000 & 7000 Series Desktop Processors
- Refer to www.asus.com for CPU support list
- Format płyty
- ATX
- BIOS
- 256 Mb Flash ROM, UEFI AMI BIOS
- Chipset płyty głównej
- AMD X870
- Ilość złącz pamięci DDR5
- 4
- Maksymalna wielkość pamięci
- 192 GB
- Tryb pracy pamięci RAM
- Dual Channel
- Uwagi do pamięci RAM
- Supports up to:
- - 8000+MT/s(OC) with Ryzen 9000 Series Processors
- - 8400+MT/s(OC) with Ryzen 8000 Series Processors
- - 8000+MT/s(OC) with Ryzen 7000 Series Processors
- ECC and Non-ECC Un-buffered DIMM
- Supports AMD EXTended Profiles for Overclocking (EXPO)
- NitroPath DRAM Technology
- ASUS Enhanced Memory Profile (AEMP)
- Supported memory types, data rate (speed), and number of DRAM modules vary
- depending on the CPU and memory configuration, for more information
- please refer to CPU/Memory Support list under the Support tab of product
- information site or visit https://www.asus.com/support/download-center/
- Non-ECC, Un-buffered DDR5 Memory supports On-Die ECC function
- Zintegrowany kontroler SATA
- Chipset+CPU: 4x SATA III 6Gb/s - RAID 0,1,5,10 + 5x M.2 + RAID 0,1,5,10
- Uwagi do kontrolera SATA
- AMD Ryzen 9000 & 8000 & 7000 Series Desktop Processors:
- - M.2_1 slot (Key M), type 2242/2260/2280 (supports PCIe 5.0 x4 mode)
- - M.2_2 slot (Key M), type 2242/2260/2280 (supports PCIe 5.0 x4 mode)
- - M.2_3 slot (Key M), type 2242/2260/2280/22110 (supports PCIe 5.0 x4 mode)
- AMD X870E Chipset:
- - M.2_4 slot (Key M), type 2280 (supports PCIe 4.0 x4 mode)
- - M.2_5 slot (Key M), type 2280 (supports PCIe 4.0 x4 mode)
- - 4 x SATA 6Gb/s ports
- AMD RAIDXpert2 Technology supports both PCIe RAID 0/1/5/10 and SATA RAID 0/
- 0/1/5/10. RAID 5 Funciton is only supportted by AMD Ryzen 9000series CPU
- M.2_2 & M.2_3 slots share bandwidth with PCIEX16(G5)
- When M.2_2 & M.2_3 are occupied with SSD devices, PCIEX16(G5) will run
- x8 only
- Wbudowana karta graficzna
- Brak lub AMD Radeon™ Graphics (zależy od procesora)
- Gniazda karty graficznej
- HDMI
- 2x USB4 Type-C
- Uwagi do karty graficznej
- Graphics specifications may vary between CPU types. Please refer to
- AMD CPU specifications
- Supports max. 4K@60Hz as specified in DisplayPort 1.4a
- Supports max. 4K@60Hz as specified in HDMI 2.1
- Zintegrowana karta dźwiękowa
- ROG SupremeFX 7.1 Surround Sound High Definition Audio CODEC ALC4080
- Gniazda karty dźwiękowej
- 2x Audio Jack
- Wyjście optyczne S/PDIF
- Wewnętrzne gniazdo audio przedniego panelu
- Uwagi do karty dźwiękowej
- Impedance sense for front and rear headphone outputs
- Supports: Jack-detection, Multi-streaming, Front Panel MIC Jack-retasking
- High quality 120 dB SNR stereo playback output and 110 dB SNR recording
- Supports up to 32-Bit/384 kHz playback
- Audio Shielding
- Savitech SV3H712 AMP
- Gold-plated audio jacks
- Premium audio capacitors
- Audio cover
- The LINE OUT port on the rear panel does not support spatial audio
- If you wish to use spatial audio, make sure to connect your audio output
- device to the audio jack on the front panel of your chassis or use a USB
- interface audio device.
- Złącza PCI Express x16
- 2
- Uwagi do złącz PCI
- AMD Ryzen 9000 & 8000 & 7000 Series Desktop Processors:
- - 1 x PCIe 5.0 x16 slots (supports x16 mode)
- AMD X870E Chipset:
- - 1 x PCIe 4.0 x16 slot (supports x4 mode)
- Please check the PCIe bifurcation table on the support
- site (https://www.asus.com/support/FAQ/1037507/)
- To ensure compatibility of the device installed, please refer to
- https://www.asus.com/support/ for the list of supported peripherals
- Port LAN
- 1x 5 Gigabit LAN Realtek®
- Uwagi do karty sieciowej
- ASUS LANGuard
- Maksymalna ilość portów USB 2.0
- 6
- Maksymalna ilość portów USB 3.x
- 16
- Maksymalna ilość portów USB 4.0
- 2

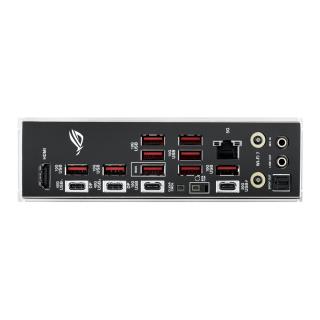

- Porty USB na panelu tylnym
- 9x USB 3.1 + 1x USB 3.1 Type-C + 1x USB 3.2 Type-C + 2x USB4 Type-C
- Gniazda USB na płycie głównej
- 3x USB 2.0 (6 portów) + 2x USB 3.0 (4 porty) + 1x USB 3.2 Type-C (1 port)
- Port Wi-Fi
- IEEE 802.11a/b/g/n/ac/ax/be
- Port Bluetooth
- Bluetooth V5.4
- Uwagi do WiFi / BT
- 2x2 Wi-Fi 7 (802.11be)
- Supports 2.4/5/6GHz frequency band
- Support Wi-Fi 7 320MHz bandwidth, up to 6.5Gbpstransfer rate
- Wi-Fi features may vary depending on the operating system
- For Windows 11, Wi-Fi 7 will require24H2 or later version for full
- functions, Windows 11 21H2/22H2/23H2 only support Wi-Fi 6E
- For Windows 10, please note that no driver is available, refer to the Wi-Fi
- chipset vendor's website for details
- Wi-Fi 6GHz frequency band and bandwidth regulatory may vary
- between countries
- The Bluetooth version may vary, please refer to the Wi-Fi module
- manufacturer's website for the latest specifications
- Port PS/2
- Brak
- Port szeregowy (COM)
- Brak
- Port równoległy (LPT)
- Brak
- Inne porty i gniazda
- Wi-Fi module with an antenna connector
- 4-pin CPU Fan header
- 4-pin CPU OPT Fan header
- 4-pin AIO Pump header
- 5x 4-pin Chassis Fan header(s)
- 3x Addressable Gen 2 header
- CPU Over Voltage jumper
- FlexKey button
- 10-1 pin System Panel header
- Thermal Sensor header
- Start button
- BIOS FlashBack button
- Clear CMOS button(s)
- Gniazdo zasilania
- ATX (24-pin) + 2x ATX12V (8-pin)
- Wymiary [S x W] (mm)
- 305 x 244
- Wyposażenie dodatkowe
- 2x SATA 6Gb/s cables
- 1x Thermal pad for M.2 22110
- 1x ASUS Wi-Fi moving antennas
- 1x Cable ties pack
- 1x M.2 Q-Latch package
- 2x M.2 Q-Slides
- 1x ROG key chain
- 1x ROG Strix stickers
- 5x M.2 Rubbers
- 1x Quick start guide
- Zawiera baterię / akumulator
- Tak
- Informacje dodatkowe
- Operating System: Windows 11 64-bit
