- Waga
- 2.26 kg
- Gniazdo procesora
- Socket AM5
- Obsługiwane typy procesorów
- AMD Ryzen™ (AM5)
- Uwagi do procesora
- AMD Socket AM5 for AMD Ryzen™ 9000 & 8000 & 7000 Series Desktop Processors
- Format płyty
- ATX
- BIOS
- 256 Mb Flash ROM, UEFI AMI BIOS
- Chipset płyty głównej
- AMD B850
- Ilość złącz pamięci DDR5
- 4
- Maksymalna wielkość pamięci
- 192 GB
- Tryb pracy pamięci RAM
- Dual Channel
- Standard pamięci
- DDR5-8000+ (OC)
- Uwagi do pamięci RAM
- Supports AMD Extended Profiles for Overclocking (EXPO™)
- ASUS Enhanced Memory Profile (AEMP)
- Supported memory types, data rate (speed), and number of DRAM modules vary
- depending on the CPU and memory configuration, for more information please
- refer to CPU/Memory Support list under the Support tab of product
- information site or visit https://www.asus.com/support/download-center/.
- Non-ECC, un-buffered DDR5 memory supports On-Die ECC function
- Zintegrowany kontroler SATA
- Chipset+CPU: 2x SATA III 6Gb/s - RAID 0,1 + 4x M.2
- Uwagi do kontrolera SATA
- AMD Ryzen™ 9000 & 7000 Series Desktop Processors:
- - M.2_1 (Key M), type 2242/2260/2280 (supports PCIe 5.0x4 mode)
- - M.2_2 (Key M), type 2280/22110 (supports PCIe 4.0 x4 mode)
- AMD Ryzen™ 8000 Series Desktop Processors:
- - M.2_1 (Key M), type 2242/2260/2280 (supports PCIe 4.0x4 mode)
- - M.2_2 (Key M), type 2280/22110 (supports PCIe 4.0 x4/x2 mode)
- AMD B850 Chipset:
- - M.2_3 (Key M), type 2280 (supports PCIe 4.0 x4)
- - M.2_4 (Key M), type 2280 (supports PCIe 4.0 x4)
- 2 x SATA 6Gb/s ports
- Specifications vary by CPU types.
- M.2_3 slot shares bandwidth with PCIEX16(G4). When PCIEX16(G4) slot is
- operating, M.2_3 will be disabled.
- AMD RAIDXpert2 Technology:
- - Ryzen™ 9000 Series Processors: RAID 0/1/5/10
- - Ryzen™ 8000 Series Processors: RAID 0/1
- - Ryzen™ 7000 Series Processors: RAID 0/1/10
- Gniazda karty graficznej
- HDMI
- DisplayPort
- Uwagi do karty graficznej
- Graphics specifications may vary between CPU types. Please refer to
- AMD CPU specifications
- Supports 4K@60Hz as specified in HDMI 2.1
- Supports max. 8K@30Hz as specified in DisplayPort 1.4
- VGA resolution support depends on processors' or graphic cards' resolution
- Zintegrowana karta dźwiękowa
- ROG SupremeFX 7.1 Surround Sound High Definition Audio CODEC ALC4080
- Gniazda karty dźwiękowej
- 2x Audio Jack
- Wewnętrzne gniazdo audio przedniego panelu
- Wyjście optyczne S/PDIF
- Uwagi do karty dźwiękowej
- Impedance sense for front and rear headphone outputs
- Supports: Jack-detection, Multi-streaming, Front Panel MIC Jack-retasking
- High quality 120 dB SNR stereo playback output and 110 dB SNR recording inp
- Supports up to 32-Bit/384 kHz playback on front panel
- SupremeFX Shielding Technology
- Savitech SV3H712 AMP
- Rear optical S/PDIF out port
- Premium audio capacitors
- Audio cover
- A chassis with an HD audio module in the front panel is required to support
- 7.1 Surround Sound audio output.
- The LINE OUT port on the rear panel does not support spatial audio. If you
- wish to use spatial audio, make sure to connect your audio output device
- to the audio jack on the front panel of your chassis or use a
- USB interface audio device.
- Złącza PCI Express x16
- 3
- Uwagi do złącz PCI
- AMD Ryzen™ 9000 & 7000 Series Desktop Processors:
- - 1 x PCIe 5.0 x16 slot with Q-Release Slim
- AMD Ryzen™ 8000 Series Desktop Processors:
- - 1 x PCIe 5.0 x16 slot with Q-Rlease Slim(supports PCIe 4.0 x8 or x4 mode)
- AMD B850 Chipset:
- - 1 x PCIe 4.0 x16 slot (supports x4 mode)
- Specifications vary by CPU types.
- PCIEX16(G4) slot (supports x4 mode) from AMD B850 Chipset shares bandwidth
- with M.2_3
- Port LAN
- 1x 2,5 Gigabit LAN Intel®
- Uwagi do karty sieciowej
- ASUS LANGuard
- Maksymalna ilość portów USB 2.0
- 6
- Maksymalna ilość portów USB 3.x
- 11

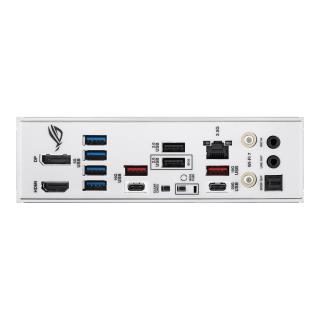

- Porty USB na panelu tylnym
- 2x USB 2.0 + 4x USB 3.0 + 3x USB 3.1 + 1x USB 3.2 Type-C
- Gniazda USB na płycie głównej
- 2x USB 2.0 (4 porty) + 1x USB 3.0 (2 porty) + 1x USB 3.1 Type-C (1 port)
- Port Wi-Fi
- IEEE 802.11a/b/g/n/ac/ax/be
- Port Bluetooth
- Bluetooth V5.4
- Uwagi do WiFi / BT
- 2x2 Wi-Fi 7 (802.11be)
- Supports 2.4/5/6GHz frequency band
- Supports Wi-Fi 7 160MHz bandwidth, up to 2.9Gbps transfer rate
- Wi-Fi features may vary depending on the operating system
- For Windows 11, Wi-Fi 7 will require 24H2 or later version for full
- functions, Windows 11 21H2/22H2/23H2 only supports Wi-Fi 6E.
- For Windows 10, only Wi-Fi 6 is supported.
- Wi-Fi 6GHz frequency band and bandwidth regulatory may vary between
- countries
- The Bluetooth® version may vary, please refer to the Wi-Fi module
- manufacturer's website for the latest specifications.
- Port PS/2
- Brak
- Port szeregowy (COM)
- Brak
- Port równoległy (LPT)
- Brak
- Inne porty i gniazda
- 4-pin CPU Fan header
- 4-pin CPU OPT Fan header
- 4-pin AIO Pump header
- 4x 4-pin Chassis Fan headers
- 3x Addressable Gen 2 header
- CPU Over Voltage jumper
- Front Panel Audio header (AAFP)
- Power-on button(s)
- 10-1 pin System Panel header
- Thermal Sensor header
- Thunderbolt™ (USB4®) header
- BIOS FlashBack button
- Clear CMOS button(s)
- Gniazdo zasilania
- ATX (24-pin) + 2x ATX12V (8-pin)
- Wymiary [S x W] (mm)
- 305 x 244
- Wyposażenie dodatkowe
- 2 x SATA 6Gb/s cables
- 1 x ASUS WiFi Q-Antenna
- 1 x Cable ties package
- 1 x M.2 Q-Latch package
- 1 x M.2 Q-Slide package
- 1 x ROG key chain
- 1 x ROG Strix stickers
- 4 x M.2 rubbers
- 1 x Quick start guide
- Zawiera baterię / akumulator
- Tak
- Informacje dodatkowe
- Operating System: Windows11
- Manageability: WOL by PME, PXE
