- Waga
- 3.63 kg
- Gniazdo procesora
- Socket 1700
- Obsługiwane typy procesorów
- Intel Core i3 12th Generation
- Intel Core i5 12th Generation
- Intel Core i7 12th Generation
- Intel Core i9 12th Generation
- Intel Core i3 13th Generation
- Intel Core i5 13th Generation
- Intel Core i7 13th Generation
- Intel Core i9 13th Generation
- Intel Core i3 14th Generation
- Intel Core i5 14th Generation
- Intel Core i7 14th Generation
- Intel Core i9 14th Generation
- Intel Pentium™ (Socket 1700)
- Intel Celeron™ (Socket 1700)
- Uwagi do procesora
- Supports Intel® Turbo Boost Technology 2.0 and Intel® Turbo Boost Max
- Technology 3.0
- Refer to www.asus.com for CPU support list
- Intel® Turbo Boost Max Technology 3.0 support depends on the CPU types
- Format płyty
- ATX
- BIOS
- 256 Mb Flash ROM, UEFI AMI BIOS
- Chipset płyty głównej
- Intel® Z790
- Ilość złącz pamięci DDR5
- 4
- Maksymalna wielkość pamięci
- 192 GB
- Tryb pracy pamięci RAM
- Dual Channel
- Standard pamięci
- DDR5-8000+ (OC)
- DDR5-7800+ (OC)
- DDR5-7600 (OC)
- DDR5-7400 (OC)
- DDR5-7200 (OC)
- DDR5-7000 (OC)
- DDR5-6800 (OC)
- DDR5-6600 (OC)
- DDR5-6400 (OC)
- DDR5-6200 (OC)
- DDR5-6000 (OC)
- DDR5-5800 (OC)
- DDR5-5600
- DDR5-5400
- DDR5-5200
- DDR5-5000
- DDR5-4800
- Uwagi do pamięci RAM
- Non-ECC, un-buffered DDR5 memory supports On-Die ECC function
- Supports Intel® Extreme Memory Profile (XMP) memory module
- ASUS Enhanced Memory Profile II (AEMP II)
- Supports DIMM Flex
- Supported memory types, data rate (speed), and number of DRAM modules vary
- depending on the CPU and memory configuration, for more information please
- refer to www.asus.com for memory support list
- Zintegrowany kontroler SATA
- Chipset+CPU: 4x SATA III 6Gb/s - RAID 0,1,5,10 + 5x M.2 + RAID 0,1,5,10
- Uwagi do kontrolera SATA
- Intel® CoreTM Processors (14th & 13th & 12th Gen):
- - M.2_1 slot (Key M), type 2242/2260/2280/22110 - supports PCIe 5.0 x4 mode
- - M.2_2 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 mode)
- Intel® Z790 Chipset:
- - M.2_3 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 mode)
- - M.2_4 slot (Key M), type 2280 (supports PCIe 4.0 x4 mode)
- - M.2_5 slot (Key M), type 2280 (supports PCIe 4.0 x4 mode)
- - 4 x SATA 6Gb/s ports
- Intel® Rapid Storage Technology
- When M.2_1 is enabled, PCIEX16(G5)_1 will run x8 only
- Wbudowana karta graficzna
- Brak lub Intel® UHD Graphics / Intel® Xe Graphics (zależy od procesora)
- Gniazda karty graficznej
- HDMI
- 2x Thunderbolt™ 4 (USB Type-C®)
- Uwagi do karty graficznej
- Graphics specifications may vary between CPU types. Please refer to
- ww.intel.com for any updates
- Supports 4K@60Hz as specified in HDMI 2.1
- VGA resolution support depends on processors' or graphic cards' resolution
- Zintegrowana karta dźwiękowa
- ROG SupremeFX 7.1 Surround Sound High Definition Audio CODEC ALC4082
- Gniazda karty dźwiękowej
- 5x Audio Jack
- Wyjście optyczne S/PDIF
- Wewnętrzne gniazdo audio przedniego panelu
- Uwagi do karty dźwiękowej
- Impedance sense for front and rear headphone outputs
- Supports: Jack-detection, Multi-streaming, Front Panel Jack-retasking
- High quality 120 dB SNR stereo playback output and 110 dB SNR recording inp
- Supports up to 32-Bit/384 kHz playback on front panel
- SupremeFX Shielding Technology
- ESS® ES9218 QUAD DAC
- Gold-plated audio jacks
- Rear optical S/PDIF out port
- Premium audio capacitors
- The LINE OUT port on the rear panel does not support spatial audio. If you
- wish to use spatial audio, make sure to connect your audio output device to
- the audio jack on the front panel of your chassis or use a USB interface
- audio device
- Złącza PCI Express x16
- 1
- Złącza PCI Express x4
- 1
- Uwagi do złącz PCI
- Intel® Core™ Processors (14th & 13th & 12th Gen):
- - 1 x PCIe 5.0 x16 slot (support x16 or x8 modes)
- Intel® Z790 Chipset:
- - 1 x PCIe 4.0 x4 slot
- Please check the PCIe bifurcation table on the support site
- (https://www.asus.com/support/FAQ/1037507/)
- When M.2_1 is enabled, PCIEX16(G5)_1 will run x8 only
- To ensure compatibility of the device installed, please refer to
- https://www.asus.com/support/ for the list of supported peripherals
- Port LAN
- 1x 2,5 Gigabit LAN 100/1000/2500 Mb/s
- Uwagi do karty sieciowej
- ASUS LANGuard
- Maksymalna ilość portów USB 2.0
- 4
- Maksymalna ilość portów USB 3.x
- 17

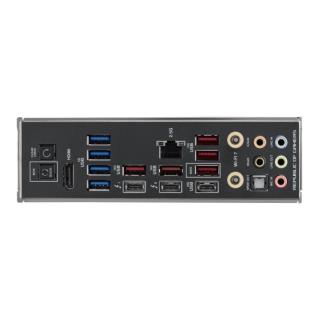

- Porty USB na panelu tylnym
- 4x USB 3.0 + 5x USB 3.1 + 1x USB 3.1 Type-C + 2x Thunderbolt 4
- Gniazda USB na płycie głównej
- 2x USB 2.0 (4 porty) + 2x USB 3.0 (4 porty) + 1x USB 3.2 Type-C (1 port)
- Port Wi-Fi
- IEEE 802.11a/b/g/n/ac/ax/be
- Port Bluetooth
- Bluetooth V5.4
- Uwagi do WiFi / BT
- Wi-Fi 7
- 2x2 Wi-Fi 7 (802.11be)
- Supports 2.4/5/6GHz frequency band
- Support Wi-Fi 7 320MHz bandwidth, up to 5.76Gbps transfer rate
- Compatible with Windows 11 or later
- Wi-Fi 7 MLO(Multi-link Operation) full functions support will be ready in
- Windows 11 2024 Platform (Windows 11 24H2) or later
- Wi-Fi 6GHz frequency band and bandwidth regulatory may vary between countri
- The Bluetooth version may vary, please refer to the Wi-Fi module
- manufacturer's website for the latest specifications
- Port PS/2
- Brak
- Port szeregowy (COM)
- Brak
- Port równoległy (LPT)
- Brak
- Inne porty i gniazda

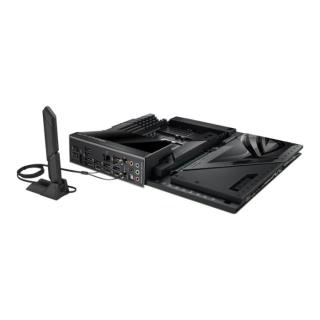

- Wi-Fi module with an antenna connector
- Przycisk BIOS FlashBack na panelu tylnym
- Przycisk Clear CMOS na panelu tylnym
- 4-pin CPU Fan header
- 4-pin CPU OPT Fan header
- 4-pin Chassis Fan header
- 4x 4-pin Chassis Fan headers
- 3x Addressable Gen 2 header
- AURA RGB header
- FlexKey button
- Start button
- 10-1 pin System Panel header
- Thermal Sensor connectors
- Gniazdo zasilania
- ATX (24-pin) + 2x ATX12V (8-pin)
- Wymiary [S x W] (mm)
- 305 x 244

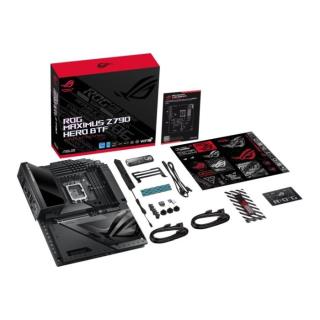

- Opakowanie
- BOX
- Zawiera baterię / akumulator
- Tak
- Informacje dodatkowe
- Windows® 11 64-bit, Windows® 10 64-bit
- Manageability: WOL by PME, PXE
- 1 x Graphics card high power slot
- 1 x 12V-2X6 Auxiliary power connector
