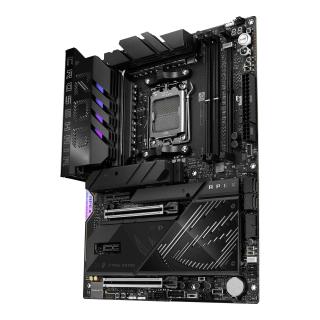

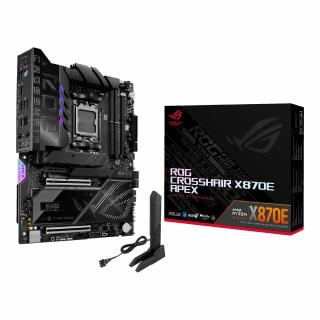

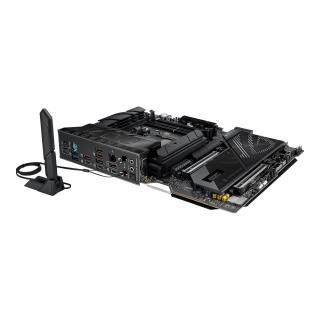

Płyta Asus ROG CROSSHAIR X870E APEX /AMD X870/DDR5/SATA3/M.2/USB4/WiFi/BT/PCIE5.0/AM5/ATX

Specyfikacja

Waga

4 kg

Gniazdo procesora

Socket AM5

Obsługiwane typy procesorów

AMD Ryzen™ (AM5)

Uwagi do procesora

AMD Socket AM5 for AMD Ryzen 9000 & 8000 & 7000 Series Desktop Processors

Refer to www.asus.com for CPU support list

Format płyty

ATX

BIOS

2 x 256 Mb Flash ROM, UEFI AMI BIOS

Chipset płyty głównej

AMD X870

Ilość złącz pamięci DDR5

2

Maksymalna wielkość pamięci

128 GB

Tryb pracy pamięci RAM

Dual Channel

Standard pamięci

DDR5-9600+ (OC)

DDR5-8200+ (OC)

DDR5-8000+ (OC)

Uwagi do pamięci RAM

Supports up to:

- 8200+MT/s(OC) with Ryzen™ 9000 Series Processors,

- 9600+MT/s(OC) with Ryzen™ 8000 Series Processors,

- 8000+MT/s(OC) with Ryzen™ 7000 Series Processors,

ECC and Non-ECC, Un-buffered Memory

Supports AMD Extended Profiles for Overclocking (EXPO)

NitroPath DRAM Technology

ASUS Enhanced Memory Profile (AEMP)

Supported memory types, data rate (speed), and number of DRAM modules vary

depending on the CPU and memory configuration, for more information please

refer to CPU/Memory Support list under the Support tab of product

information site or visit https://www.asus.com/support/download-center/

Non-ECC, un-buffered DDR5 memory supports On-Die ECC function

Zintegrowany kontroler SATA

Chipset+CPU: 4x SATA III 6Gb/s - RAID 0,1,5,10 + 5x M.2 + RAID 0,1,5,10

Uwagi do kontrolera SATA

AMD Ryzen 9000 & 7000 Series Desktop Processors:

- M.2_1 slot (Key M), type 2242/2260/2280 (supports PCIe 5.0 x4 mode)

- M.2_2 slot (Key M), type 2242/2260/2280 (supports PCIe 5.0 x4 mode)

- M.2_3 slot (Key M), type 2242/2260/2280 (supports PCIe 5.0 x4 mode)

AMD Ryzen 8000 Series Desktop Processors:

- M.2_1 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 mode)

- M.2_2 slot (Key M), type 2242/2260/2280 (Not supports)

- M.2_3 slot (Key M), type 2242/2260/2280 (Not supports)

AMD X870E Chipset:

- DIMM.2_1 slot (Key M) via ROG Q-DIMM.2, type 2230/2242/2260/2280/22110

(supports PCIe 4.0 x4 mode)

- DIMM.2_2 slot (Key M) via ROG Q-DIMM.2, type 2230/2242/2260/2280/22110

(supports PCIe 4.0 x4 mode)

- 4 x SATA 6Gb/s ports

When M.2_2 and M.2_3 are enabled simultaneously, PCIEX16(G5)_2 will be

disabled

When M.2_3 is enabled, PCIEX16(G5)_1 will run x8, and PCIEX16(G5)_2 will

run x4, M.2_2 will be disabled.

Wbudowana karta graficzna

Brak lub AMD Radeon™ Graphics (zależy od procesora)

Gniazda karty graficznej

2x USB4 Type-C

Uwagi do karty graficznej

Graphics specifications may vary between CPU types. Please refer to

AMD CPU specifications

Supports max. 4K@60Hz as specified in DisplayPort 1.4a

Supports 4K@60Hz as specified in HDMI 2.1

VGA resolution support depends on processors' or graphic cards' resolution.

Zintegrowana karta dźwiękowa

ROG SupremeFX 7.1 Surround Sound High Definition Audio CODEC ALC4080

Gniazda karty dźwiękowej

2x Audio Jack

Wyjście optyczne S/PDIF

Wewnętrzne gniazdo audio przedniego panelu

Uwagi do karty dźwiękowej

Impedance sense for front and rear headphone outputs

Supports: Jack-detection, Multi-streaming, Front Panel MIC Jack-retasking

High quality 120 dB SNR stereo playback output and 110 dB SNR recording

Supports up to 32-Bit/384 kHz playback on front panel

SupremeFX Shielding Technology

Savitech SV3H712 AMP

Gold-plated audio jacks

Premium audio capacitors

Audio cover

A chassis with an HD audio module in the front panel is required to

support 7.1 Surround Sound audio output

The LINE OUT port on the rear panel does not support spatial audio

If you wish to use spatial audio, make sure to connect your audio output

device to the audio jack on the front panel of your chassis or use a USB

interface audio device.

Złącza PCI Express x16

2

Złącza PCI Express x4

1

Złącza PCI Express x1

1

Uwagi do złącz PCI

AMD Ryzen 9000 & 7000 Series Desktop Processors:

- 2 x PCIe 5.0 x16 slots with Q-Release Slim (supports x16 or x8/x8 or x8

x8/x4/x4 modes)

- When you use both PCIEX16(G5)_1 and PCIEX16(G5)_2, PCIEX16(G5)_1 and

PCIEX16(G5)_2 will run x8.

- When M.2_3 is enabled, PCIEX16(G5)_1 will run x8, and PCIEX16(G5)_2

will run x4.

- When M.2_2 and M.2_3 are enabled simultaneously, PCIEX16(G5)_2 will be

disabled

AMD Ryzen™ 8700 & 8600 & 8400 Series Desktop Processors:

- 2 x PCIe 4.0 x16 slots with Q-Release Slim (only supports PCIEx16(G5)_1 &

total bandwidth for x8, PCIEx16(G5)_2 will be disabled)

AMD Ryzen™ 8500 & 8300 Series Desktop Processors:

- 2 x PCIe 4.0 x16 slots with Q-Release Slim (only supports PCIEx16(G5)_1 &

total bandwidth for x4, PCIEx16(G5)_2 will be disabled)

AMD X870E Chipset:

- 1 x PCIe 4.0 x4 slot

- 1 x PCIe 3.0 x1 slot

Please check the PCIe bifurcation table on the support site

(https://www.asus.com/support/FAQ/1037507/).

To ensure compatibility of the device installed, please refer to

https://www.asus.com/support/ for the list of supported

Port LAN

1x 5 Gigabit LAN Realtek®

Uwagi do karty sieciowej

ASUS LANGuard

Maksymalna ilość portów USB 2.0

4

Maksymalna ilość portów USB 3.x

14

Maksymalna ilość portów USB 4.0

2

Porty USB na panelu tylnym

2x USB 3.0 + 5x USB 3.1 + 1x USB 3.1 Type-C + 2x USB4 Type-C

Gniazda USB na płycie głównej

2x USB 2.0 (4 porty) + 2x USB 3.0 (4 porty) + 2x USB 3.2 Type-C (2 porty)

Port Wi-Fi

IEEE 802.11a/b/g/n/ac/ax/be

Port Bluetooth

Bluetooth V5.4

Uwagi do WiFi / BT

2x2 Wi-Fi 7 (802.11be)

Supports 2.4/5/6GHz frequency band

Supports Wi-Fi 7 320MHz bandwidth, up to 6.5Gbps transfer rate

Wi-Fi features may vary depending on the operating system

For Windows 11, Wi-Fi 7 will require 24H2 or later version for full

functions, Windows 11 21H2/22H2/23H2 only support Wi-Fi 6E

For Windows 10, please note that no driver is available, refer to the Wi-Fi

chipset vendor's website for details

Wi-Fi 6GHz frequency band and bandwidth regulatory may vary

between countries

The Bluetooth version may vary, please refer to the Wi-Fi module

manufacturer's website for the latest specifications

Port PS/2

Port combo klawiatury/myszy PS/2

Port szeregowy (COM)

Brak

Port równoległy (LPT)

Brak

Inne porty i gniazda

4-pin CPU Fan header

4-pin CPU OPT Fan header

4-pin AIO Pump header

2x 4-pin Chassis Fan headers

2x 4-pin Full Speed Fan headers

W_PUMP+ header

Extra Flow Fan header

80 Light Bar jumper

3x Addressable Gen 2 header

Alteration PCIe mode switch

2x BCLK button

BIOS Switch button

FlexKey button

LN2 Mode jumper

Pause switch

12x punkt pomiaru ProbeIt

ReTry button

RSVD header

2x RSVD switches

Safe Boot button

Slow Mode switch

Start button

10-1 pin System Panel header

Thermal Sensor header

Gniazdo zasilania

ATX (24-pin) + 2x ATX12V (8-pin) + PCIe (8-pin)

Wymiary [S x W] (mm)

305 x 244

Wyposażenie dodatkowe

1 x ROG DIMM.2 with heatsink

1 x M.2 pad for ROG DIMM.2

2 x M.2 screw package for ROG DIMM.2

1 x ROG Memory Fan Kit

1 x ASUS WiFi Q-Antenna

1 x Q-connector

3 x M.2 Q-Slide package

3 x M.2 rubber package

1 x ROG stickers

1 x ROG thank you card

1 x ROG Bottle Opener

1 x USB drive with utilities and drivers

1 x Quick start guide

Zawiera baterię / akumulator

Tak

Informacje dodatkowe

Operating System: Windows 11
