- Waga
- 2.4 kg
- Gniazdo procesora
- Socket 1700
- Obsługiwane typy procesorów
- Intel Core i3 12th Generation
- Intel Core i5 12th Generation
- Intel Core i7 12th Generation
- Intel Core i9 12th Generation
- Intel Core i3 13th Generation
- Intel Core i5 13th Generation
- Intel Core i7 13th Generation
- Intel Core i9 13th Generation
- Intel Core i3 14th Generation
- Intel Core i5 14th Generation
- Intel Core i7 14th Generation
- Intel Core i9 14th Generation
- Intel Pentium™ (Socket 1700)
- Intel Celeron™ (Socket 1700)
- Uwagi do procesora
- Supports Intel® Turbo Boost Technology 2.0 and Intel® Turbo Boost Max
- Technology 3.0
- Refer to www.asus.com for CPU support list
- Intel® Turbo Boost Max Technology 3.0 support depends on the CPU types
- Format płyty
- ATX
- BIOS
- 256 Mb
- Chipset płyty głównej
- Intel® Z790
- Ilość złącz pamięci DDR5
- 4
- Maksymalna wielkość pamięci
- 192 GB
- Tryb pracy pamięci RAM
- Dual Channel
- Standard pamięci
- DDR5-4800
- DDR5-5000
- DDR5-5200
- DDR5-5400
- DDR5-5600
- DDR5-5800 (OC)
- DDR5-6000 (OC)
- DDR5-6200 (OC)
- DDR5-6400 (OC)
- DDR5-6600 (OC)
- DDR5-6800 (OC)
- DDR5-7000 (OC)
- DDR5-7200 (OC)
- Uwagi do pamięci RAM
- Non-ECC, Un-buffered Memory
- Supports Intel® Extreme Memory Profile (XMP)
- OptiMem II
- Refer to www.asus.com for the Memory QVL (Qualified Vendors Lists), and
- memory frequency support depends on the CPU types
- Zintegrowany kontroler SATA
- Chipset+CPU: 8x SATA III 6Gb/s - RAID 0,1,5,10 + 4x M.2 - RAID 0,1,5
- Uwagi do kontrolera SATA
- Total supports 4 x M.2 slots and 8 x SATA 6Gb/s ports
- Intel® 13th & 12th Gen Processors:
- - M.2_1 slot (Key M), type 2242/2260/2280/22110 (supports PCIe 4.0 x4 mode)
- Intel® Z790 Chipset:
- - M.2_2 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 mode)
- - M.2_3 slot (Key M), type 2242/2260/2280/22110 (supports PCIe 4.0 x4 mode)
- - M.2_4 slot (Key M), type 2242/2260/2280 (supports PCIe4.0x4 & SATA modes)
- - 8 x SATA 6Gb/s ports
- Intel® Rapid Storage Technology supports NVMe RAID 0/1/5,SATA RAID 0/1/5/10
- M.2_4 slot shares bandwidth with SATA6G_5~8. SATA6G5~8 will be suspended
- once either a SATA or NVMe device is detected at M.2_4
- Wbudowana karta graficzna
- Brak lub Intel® UHD Graphics 730/750/770/Iris Xe (zależy od procesora)
- Gniazda karty graficznej
- HDMI
- 2x Thunderbolt™ 4 (USB Type-C®)
- Uwagi do karty graficznej
- 2x Intel® Thunderbolt™ 4 ports (USB Type-C®) support DisplayPort and
- Thunderbolt™ video outputs
- Graphics specifications may vary between CPU types
- Please refer to www.intel.com for any updates
- Support 4K@60Hz as specified in HDMI 2.1
- Support 8K@60Hz as specified in DisplayPort 1.4
- Output at TBT4_E1 and TBT4_E2, the USB Type-C® ports right under RJ45 ports
- each requires a USB-C to DisplayPort adapter cable. For display connection
- and video output configuration regarding DP IN and Intel® Thunderbolt™ 4
- ports, please refer to the user manual for more details. VGA resolution
- support depends on processors' or graphic cards' resolution
- Zintegrowana karta dźwiękowa
- Realtek S1220A 7.1 Surround Sound High Definition Audio CODEC
- Gniazda karty dźwiękowej
- 5x Audio Jack
- Wewnętrzne gniazdo audio przedniego panelu
- Uwagi do karty dźwiękowej
- - Impedance sense for front and rear headphone outputs
- - Internal audio Amplifier to enhance the highest quality sound for
- headphone and speakers
- - Supports: Jack-detection, Multi-streaming, Front Panel Jack-retasking
- - High quality 120 dB SNR stereo playback output and 113 dB SNR recording
- input (Line-in)
- - Supports up to 32-Bit/192 kHz playback
- Audio Features:
- - Premium audio capacitors
- - Dedicated audio PCB layers
- - Audio cover
- - Unique de-pop circuit
- Due to limitations in HDA bandwidth, 32-Bit/192 kHz is not supported for
- 7.1 Surround Sound audio
- A chassis with an HD audio module in the front panel is required to support
- 7.1 Surround Sound audio output
- Złącza PCI Express x16
- 3
- Złącza PCI Express x1
- 0
- Uwagi do złącz PCI
- Intel® 13th & 12th Gen Processors:
- - 2 x PCIe 5.0 x16 slots (support x16 or x8/x8 modes)
- Intel® Z790 Chipset:
- - 1 x PCIe 4.0 x16 slot (supports x4 mode)
- Please check the PCIe bifurcation table on the support site
- (https://www.asus.com/support/FAQ/1037507/)
- To ensure compatibility of the device installed, please refer to
- https://www.asus.com/support/ for the list of supported peripherals
- Port LAN
- 1x 10 Gigabit LAN Marvell® AQtion
- 1x 2,5 Gigabit LAN Intel®
- Uwagi do karty sieciowej
- ASUS LANGuard
- Maksymalna ilość portów USB 2.0
- 4
- Maksymalna ilość portów USB 3.x
- 11

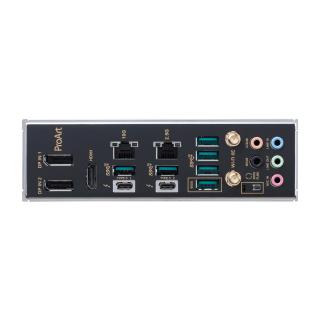

- Porty USB na panelu tylnym
- 6x USB 3.1 + 2x Thunderbolt 4/USB Type-C
- Gniazda USB na płycie głównej
- 2x USB 2.0 (4 porty) + 1x USB 3.0 (2 porty) + 1x USB 3.2 Type-C (1 port)
- Port Wi-Fi
- IEEE 802.11a/b/g/n/ac/ax
- Port Bluetooth
- Bluetooth V5.3
- Uwagi do WiFi / BT
- Wi-Fi 6E: 2x2 Wi-Fi 6E (802.11 a/b/g/n/ac/ax)
- Supports 2.4/5/6GHz frequency band
- WiFi 6E 6GHz regulatory may vary between countries
- The Bluetooth version may vary, please refer to the Wi-Fi module
- manufacturer's website for the latest specifications
- Port PS/2
- Brak
- Port szeregowy (COM)
- 1x wewnętrzne gniazdo portu COM
- Port równoległy (LPT)
- Brak
- Inne porty i gniazda
- Przycisk BIOS FlashBack na panelu tylnym
- 4-pin CPU Fan header
- 4-pin CPU OPT Fan header
- 4-pin AIO Pump header
- 5x 4-pin Chassis Fan header(s)
- 3x Addressable Gen 2 header
- AURA RGB header
- Clear CMOS header
- CPU Over Voltage jumper
- SPI TPM header (14-1pin)
- 20-3 pin System Panel header with Chassis intrude function
- Thermal Sensor header
- Gniazdo zasilania
- ATX (24-pin) + ATX12V (8-pin) + ATX12V (6-pin) + ATX12V (4-pin)
- Wymiary [S x W] (mm)
- 305 x 244

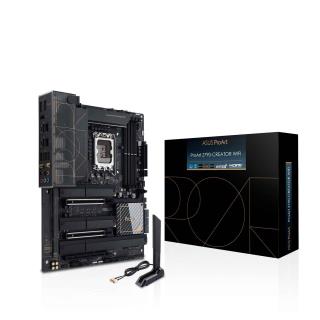

- Opakowanie
- BOX
- Zawiera baterię / akumulator
- Tak
- Informacje dodatkowe
- Manageability: WOL by PME, PXE
- Operating System: Windows® 11 64-bit, Windows® 10 64-bit
