- Waga
- 1.65 kg
- Gniazdo procesora
- Socket AM5
- Obsługiwane typy procesorów
- AMD Ryzen™ (AM5)
- Uwagi do procesora
- AMD Socket AM5 for AMD Ryzen™ 9000 & 8000 & 7000 Series Desktop Processors
- Format płyty
- ATX
- BIOS
- 256 Mb Flash ROM, UEFI AMI BIOS
- Chipset płyty głównej
- AMD B840
- Ilość złącz pamięci DDR5
- 4
- Maksymalna wielkość pamięci
- 192 GB
- Tryb pracy pamięci RAM
- Dual Channel
- Standard pamięci
- DDR5-7600+ (OC)
- Uwagi do pamięci RAM
- ECC and Non-ECC Un-buffered DIMM
- Supports AMD Extended Profiles for Overclocking (EXPO™)
- ASUS Enhanced Memory Profile (AEMP)
- Supported memory types, data rate (speed), and number of DRAM modules vary
- depending on the CPU and memory configuration, for more information please
- refer to CPU/Memory Support list under the Support tab of product
- information site or visit https://www.asus.com/support/download-center/.
- Adjustments will be made based on the specifications of mass-produced
- memory products available on the market.
- Non-ECC, un-buffered DDR5 memory supports On-Die ECC function
- Zintegrowany kontroler SATA
- Chipset+CPU: 4x SATA III 6Gb/s + 3x M.2
- Uwagi do kontrolera SATA
- AMD Ryzen™ 9000 & 7000 Series Desktop Processors:
- - M.2_1 slot (Key M), type 2280 (supports PCIe 4.0 x4 mode)
- - M.2_2 slot (Key M), type 2280 (supports PCIe 4.0 x4 mode)
- AMD Ryzen™ 8000 Series Desktop Processors:
- - M.2_1 slot (Key M), type 2280 (supports PCIe 4.0 x4 mode)
- - M.2_2 slot (Key M), type 2280 (supports PCIe 4.0 x4/x2 mode)
- AMD B840 Chipset:
- - M.2_3 slot (Key M), type 2242/2260/2280 (supports PCIe 3.0 x4 mode)
- 4 x SATA 6Gb/s ports
- Specifications vary by CPU types
- AMD RAIDXpert2 Technology:
- - Ryzen™ 9000 Series Processors: RAID 0/1/5/10
- - Ryzen™ 8000 Series Processors: RAID 0/1
- - Ryzen™ 7000 Series Processors: RAID 0/1/10
- Gniazda karty graficznej
- HDMI
- DisplayPort
- Uwagi do karty graficznej
- Graphics specifications may vary between CPU types. Please refer to
- AMD CPU specifications
- Supports 4K@60Hz as specified in HDMI 2.1
- Supports max. 8K@30Hz as specified in DisplayPort 1.4
- Zintegrowana karta dźwiękowa
- Realtek ® 7.1 Surround Sound High Definition Audio CODEC
- Gniazda karty dźwiękowej
- 3x Audio Jack
- Wewnętrzne gniazdo audio przedniego panelu
- Wewnętrzne gniazdo S/PDIF Out
- Uwagi do karty dźwiękowej
- Supports: Jack-detection, Multi-streaming, Front Panel Jack-retasking
- Supports up to 24-Bit/192 kHz playback
- Audio Shielding
- Premium audio capacitors
- Dedicated audio PCB layers
- A chassis with an HD audio module in the front panel is required to
- support 7.1 Surround Sound audio output
- Złącza PCI Express x16
- 5
- Złącza PCI Express x1
- 1
- Uwagi do złącz PCI
- AMD Ryzen™ 9000 & 7000 Series Desktop Processors:
- - 1 x PCIe 4.0 x16 slot (supports x16 mode)
- AMD Ryzen™ 8000 Series Desktop Processors:
- - 1 x PCIe 4.0 x16 slot (supports x8/x4 mode)**
- AMD B840 Chipset:
- - 1 x PCIe 3.0 x16 slot (support x4 mode)
- - 2 x PCIe 3.0 x16 slots (support x1 mode)
- - 1 x PCIe 3.0 x1 slot
- Specifications vary by CPU types
- The PCIEX16(G3)_1/3 and PCIEX1(G3) share bandwidth with PCIEX16(G3)_2
- The PCIEX16(G3)_2 will run x1 mode when any of the PCIEX16(G3)_1/3 and
- PCIEX1(G3) slots is occupied
- Port LAN
- 1x 2,5 Gigabit LAN Realtek®
- Uwagi do karty sieciowej
- ASUS LANGuard
- Maksymalna ilość portów USB 2.0
- 8
- Maksymalna ilość portów USB 3.x
- 7

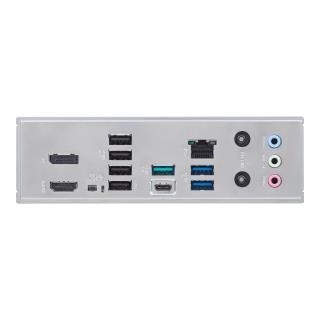

- Porty USB na panelu tylnym
- 4x USB 2.0 + 2x USB 3.0 + 1x USB 3.1 + 1x USB 3.1 Type-C
- Gniazda USB na płycie głównej
- 2x USB 2.0 (4 porty) + 1x USB 3.0 (2 porty) + 1x USB 3.0 Type-C (1 port)
- Port Wi-Fi
- IEEE 802.11a/b/g/n/ac/ax
- Port Bluetooth
- Bluetooth V5.3
- Uwagi do WiFi / BT
- 2x2 Wi-Fi 6E (802.11ax)
- Supports 2.4/5/6GHz frequency band
- WiFi 6E 6GHz regulatory may vary between countries, supported only in
- Windows 11 or later.
- The Bluetooth® version may vary, please refer to the Wi-Fi module
- manufacturer's website for the latest specifications
- Port PS/2
- Brak
- Port szeregowy (COM)
- 1x wewnętrzne gniazdo portu COM
- Port równoległy (LPT)
- Brak
- Inne porty i gniazda
- 4-pin CPU Fan header
- 4-pin CPU OPT Fan header
- 4-pin AIO Pump header
- 4x 4-pin Chassis Fan headers
- 3x Addressable Gen 2 header
- Clear CMOS button(s)
- Front Panel Audio header (AAFP)
- 10-1 pin System Panel header
- SPI TPM header (14-1pin)
- BIOS FlashBack button
- Gniazdo zasilania
- ATX (24-pin) + ATX12V (8-pin) + ATX12V (4-pin)
- Wymiary [S x W] (mm)
- 305 x 244
- Wyposażenie dodatkowe
- 2 x SATA 6Gb/s cables
- 1 x M.2 rubber package
- 3 x Screw packages for M.2 SSD
- 1 x Quick start guide

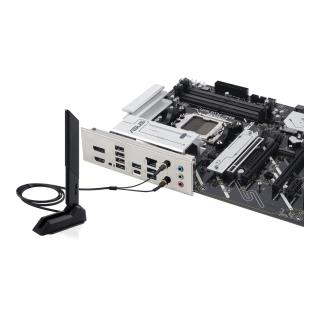

- 1 x ASUS WiFi Q-Antenna
- Zawiera baterię / akumulator
- Tak
- Informacje dodatkowe
- Operating System: Windows® 11, Windows® 10 64-bit
- Manageability: WOL by PME, PXE
