- Waga
- 1.17 kg
- Gniazdo procesora
- Socket 1700
- Obsługiwane typy procesorów
- Intel Core i3 12th Generation
- Intel Core i5 12th Generation
- Intel Core i7 12th Generation
- Intel Core i9 12th Generation
- Intel Core i3 13th Generation
- Intel Core i5 13th Generation
- Intel Core i7 13th Generation
- Intel Core i9 13th Generation
- Intel Pentium™ (Socket 1700)
- Intel Celeron™ (Socket 1700)
- Uwagi do procesora
- Supports Intel® Turbo Boost Technology 2.0 and Intel® Turbo Boost Max
- Technology 3.0
- Refer to www.asus.com for CPU support list
- Intel® Turbo Boost Max Technology 3.0 support depends on the CPU types
- Format płyty
- ATX
- BIOS
- 128 Mb Flash ROM, UEFI AMI BIOS
- Chipset płyty głównej
- Intel® B760
- Ilość złącz pamięci DDR5
- 4
- Maksymalna wielkość pamięci
- 192 GB
- Tryb pracy pamięci RAM
- Dual Channel
- Standard pamięci
- DDR5-7200+ (OC)
- DDR5-7000 (OC)
- DDR5-6800 (OC)
- DDR5-6600 (OC)
- DDR5-6400 (OC)
- DDR5-6200 (OC)
- DDR5-6000 (OC)
- DDR5-5800 (OC)
- DDR5-5600
- DDR5-5400
- DDR5-5200
- DDR5-5000
- DDR5-4800
- Uwagi do pamięci RAM
- Supports Intel® Extreme Memory Profile (XMP)
- OptiMem II
- Non-ECC, un-buffered DDR5 memory supports On-Die ECC function
- Supported memory types, data rate (speed), and number of DRAM modules
- vary depending on the CPU and memory configuration, for more information
- please refer to CPU/Memory Support under the Support tab or visit
- https://www.asus.com/support/
- Zintegrowany kontroler SATA
- Chipset+CPU: 4x SATA III 6Gb/s - RAID 0,1,10,5 + 2x M.2
- Uwagi do kontrolera SATA
- Total supports 3 x M.2 slots and 4 x SATA 6Gb/s ports
- Intel® 13th & 12th Gen Processors:
- - M.2_1 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 mode)
- Intel® B760 Chipset:
- - M.2_2 slot (Key M), type 2242/2260/2280/22110 (supports PCIe 4.0 x4 mode)
- - M.2_3 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x2 mode)
- - 4 x SATA 6Gb/s ports
- Intel® Rapid Storage Technology supports SATA RAID 0/1/5/10
- Wbudowana karta graficzna
- Brak lub Intel® UHD Graphics 730/750/770/Iris Xe (zależy od procesora)
- Gniazda karty graficznej
- HDMI
- DisplayPort
- VGA
- Uwagi do karty graficznej
- Graphics specifications may vary between CPU types
- Please refer to www.intel.com for any updates
- Supports max. 4K@60Hz as specified in DisplayPort 1.4.
- Supports 4K@60Hz as specified in HDMI 2.1.
- Zintegrowana karta dźwiękowa
- Realtek ® 7.1 Surround Sound High Definition Audio CODEC
- Gniazda karty dźwiękowej
- 5x Audio Jack
- Wyjście optyczne S/PDIF
- Uwagi do karty dźwiękowej
- Supports: Jack-detection, Multi-streaming, Front Panel Jack-retasking
- Supports up to 24-Bit/192 kHz playback
- Audio Shielding
- Rear optical S/PDIF out port
- Premium audio capacitors
- Dedicated audio PCB layers
- Złącza PCI Express x16
- 2
- Złącza PCI Express x1
- 1
- Uwagi do złącz PCI
- Intel® 13th & 12th Gen Processors:
- - 1 x PCIe 5.0 x16 slot
- Intel® B760 Chipset:
- - 1 x PCIe 4.0 x16 slot (supports x4 mode)
- - 1 x PCIe 3.0 x1 slot
- To ensure compatibility of the device installed, please refer to
- https://www.asus.com/support/ for the list of supported peripherals
- Port LAN
- 1x 2,5 Gigabit LAN 100/1000/2500 Mb/s (Realtek®)
- Maksymalna ilość portów USB 2.0
- 6
- Maksymalna ilość portów USB 3.x
- 7

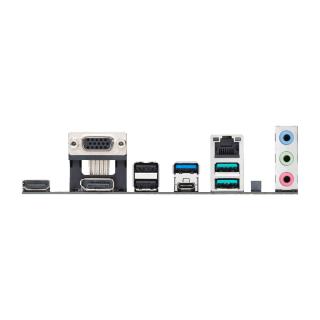

- Porty USB na panelu tylnym
- 2x USB 2.0 + 1x USB 3.0 + 2x USB 3.1 + 1x USB 3.2 Type-C
- Gniazda USB na płycie głównej
- 2x USB 2.0 (4 porty) + 1x USB 3.0 (2 porty) + 1x USB 3.0 Type-C (1 port)
- Port Wi-Fi
- Nie
- Port Bluetooth
- Nie
- Uwagi do WiFi / BT
- Vertical M.2 slot only (Key E, CNVi & PCIe)
- Wi-Fi module is sold separately
- Port PS/2
- Brak
- Port szeregowy (COM)
- Brak
- Port równoległy (LPT)
- Brak
- Inne porty i gniazda
- 4-pin CPU OPT Fan header
- 4-pin AIO Pump header
- 3x Addressable Gen 2 header
- AURA RGB header
- Thunderbolt™ (USB4®) header
- Gniazdo zasilania
- ATX (24-pin) + ATX12V (8-pin)
- Wymiary [S x W] (mm)
- 305 x 244
- Opakowanie
- BOX
- Wyposażenie dodatkowe
- 2 x SATA 6Gb/s cables

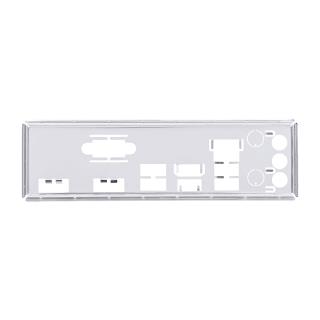

- 1 x I/O Shield
- 1 x M.2 Rubber Package
- 2 x Screw Packages for M.2 SSD
- 1 x User guide
- Zawiera baterię / akumulator
- Tak
- Informacje dodatkowe
- Manageability: WOL by PME, PXE
- Operating System: Windows® 11, Windows® 10 64-bit
