- Waga
- 1.3 kg
- Inne porty i gniazda
- BIOS FlashBack button
- 2x Antenna Ports
- SPI TPM header (14-1pin)
- Power LED and Speaker Header
- RGB LED Header
- 3x Addressable LED Headers
- 2x CPU Fan connector(s)
- 3x Chassis Fan Connectors
- Front Panel Audio Connector
- Gniazdo zasilania
- ATX (24-pin) + ATX12V (8-pin) + ATX12V (4-pin)
- Wymiary [S x W] (mm)
- 244 x 244

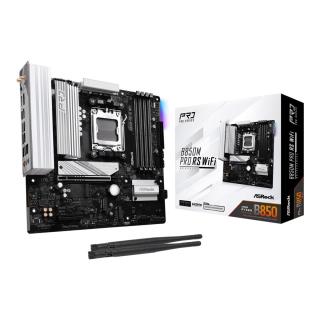

- Opakowanie
- BOX
- Wyposażenie dodatkowe
- - 2 x SATA Data Cables
- - 2 x ASRock WiFi 2.4/5/6 GHz Antennas
- Zawiera baterię / akumulator
- Tak
- Informacje dodatkowe
- OS: Microsoft Windows® 10 64-bit / 11 64-bit
- Certifications: FCC, CE, ErP/EuP ready
- (ErP/EuP ready power supply is required)
- Gniazdo procesora
- Socket AM5
- Obsługiwane typy procesorów
- AMD Ryzen™
- Uwagi do procesora
- - Supports AMD Socket AM5 Ryzen™ 9000, 8000 and 7000 Series Processors
- Format płyty
- Micro-ATX
- BIOS
- - 256Mb AMI UEFI Legal BIOS with GUI support
- Chipset płyty głównej
- AMD B850
- Ilość złącz pamięci DDR5
- 4
- Maksymalna wielkość pamięci
- 256 GB
- Tryb pracy pamięci RAM
- Dual Channel
- Standard pamięci
- DDR5-8000+ (OC)
- Uwagi do pamięci RAM
- Supports DDR5 ECC/non-ECC
- Supports Extreme Memory Profile (XMP) and EXTended Profiles for
- Overclocking (EXPO) memory modules
- Zintegrowany kontroler SATA
- Chipset+CPU: 4x SATA III 6Gb/s + 3x M.2
- Uwagi do kontrolera SATA
- CPU:
- - 1 x Blazing M.2 Socket (M2_1, Key M), supports type 2280 PCIe Gen5x4
- (128 Gb/s) mode
- Chipset:
- - 1 x Hyper M.2 Socket (M2_2, Key M), supports type 2280 PCIe Gen4x4
- (64 Gb/s) mode
- - 1 x Hyper M.2 Socket (M2_3, Key M), supports type 2280 PCIe Gen4x4
- (64 Gb/s) mode
- - 4 x SATA3 6.0 Gb/s Connectors
- Supports NVMe SSD as boot disks
- M2_1 is the first priority for M.2 installation.
- M2_1 will run at Gen5x4 with 9000 and 7000 series processors and Gen4x4
- with 8000 (Phoenix 1 and Phoenix 2) series processors.
- M2_3 will run at Gen4x4 with 9000 and 7000 series processors, Gen4x4 with
- 8000 (Phoenix 1) series processors and Gen4x2 with 8000 (Phoenix 2)
- series processors.
- If M2_3 is occupied, PCIE2 will be disabled.
- Supports RAID 0, RAID 1 and RAID 10 for SATA storage devices
- Supports RAID 0, RAID 1 and RAID 10 for M.2 NVMe storage devices
- Requires additional M.2 NVMe expansion cards to support RAID 10
- Wbudowana karta graficzna
- Brak lub AMD RDNA™ 2 (zależy od procesora)
- Gniazda karty graficznej
- HDMI
- DisplayPort
- Uwagi do karty graficznej
- - 1 x HDMI 2.1 TMDS/FRL 8G Compatible, supports HDR, HDCP 2.3 and max.
- resolution up to 4K 120Hz
- - 1 x DisplayPort 1.4 with DSC (compressed), supports HDCP 2.3 and max.
- resolution up to 4K 120Hz
- Zintegrowana karta dźwiękowa
- Realtek ALC897
- Gniazda karty dźwiękowej
- 3x Audio Jack
- Wyjście optyczne S/PDIF
- Wewnętrzne gniazdo audio przedniego panelu
- Uwagi do karty dźwiękowej
- - Nahimic Audio
- - 7.1 CH HD Audio
- Złącza PCI Express x16
- 1
- Złącza PCI Express x4
- 1
- Uwagi do złącz PCI
- CPU:
- - 1 x PCIe 5.0 x16 Slot (PCIE1), supports x16 mode
- - 1 x PCIe 4.0 x4 Slot (PCIE2), supports x4 mode
- Chipset:
- - 1 x M.2 Socket (Key E), supports type 2230 WiFi/BT PCIe WiFi module
- - 15µ Gold Contact in VGA PCIe Slot (PCIE1)
- PCIE1 will run at Gen5x16 with 9000 and 7000 series processors, Gen4x8 with
- 8000 (Phoenix 1) series processors and Gen4x4 with 8000 (Phoenix 2)
- series processors.
- If M2_3 is occupied, PCIE2 will be disabled.
- Supports NVMe SSD as boot disks
- Port LAN
- 1x 2,5 Gigabit LAN 10/100/1000/2500 Mb/s (Dragon RTL8125BG)
- Uwagi do karty sieciowej
- Supports Dragon 2.5G LAN Software
- - Smart Auto Adjust Bandwidth Control
- - Visual User Friendly UI
- - Visual Network Usage Statistics
- - Optimized Default Setting for Game, Browser, and Streaming Modes
- - User Customized Priority Control
- Maksymalna ilość portów USB 2.0
- 8
- Maksymalna ilość portów USB 3.x
- 9

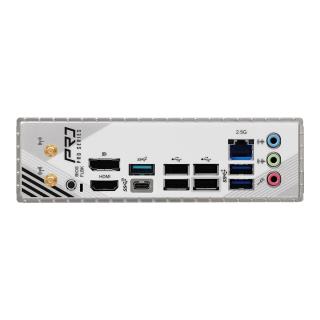

- Porty USB na panelu tylnym
- 4x USB 2.0 + 2x USB 3.0 + 1x USB 3.1 + 1x USB 3.1 Type-C
- Gniazda USB na płycie głównej
- 4x USB 2.0 + 4x USB 3.0 + 1x USB 3.0 Type-C
- Port Wi-Fi
- IEEE 802.11a/b/g/n/ac/ax/axe
- Port Bluetooth
- Bluetooth V5.2
- Uwagi do WiFi / BT
- - 802.11axe Wi-Fi 6E Module
- - Supports Dual-Band 2x2 with extended 6GHz band support
- - 2 antennas to support 2 (Transmit) x 2 (Receive) diversity technology
- - Supports MU-MIMO
- The Wi-Fi 6E module is supported by Microsoft Windows® 11 only. There is no
- driver available for Windows® 10. The availability of the 6GHz band will
- depend on the different regulation status of each country and region. It
- will be activated (for supported countries) through Windows® Update and
- software updates once available.
- A 6GHz compatible router is required for 6E functionality.
- Port PS/2
- Brak
- Port szeregowy (COM)
- Brak
- Port równoległy (LPT)
- Brak
